InteroceptionScale - Study 1: Data Analysis

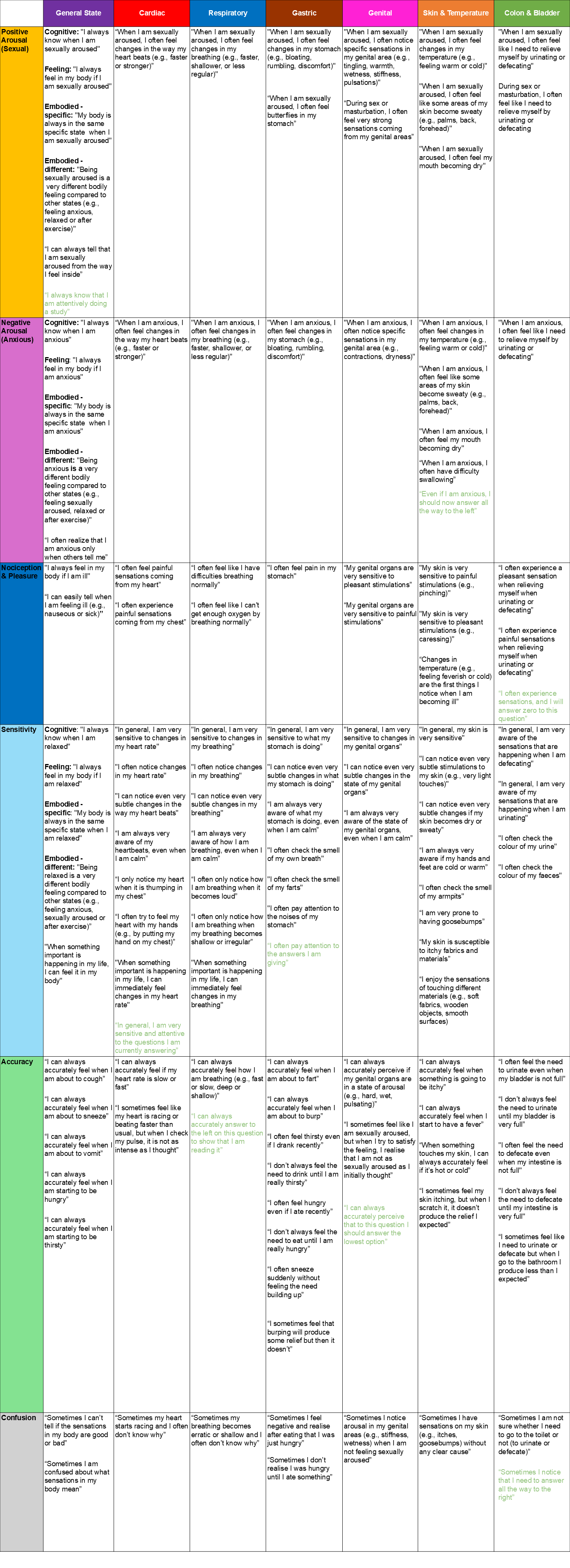

Original Items

Code

knitr::include_graphics("figures/table_originalitems.png")

Data Preparation

Code

library(tidyverse)
library(easystats)
library(patchwork)
library(ggside)
library(EGAnet)
library(tidygraph)
library(ggraph)

set.seed(42)

df <- read.csv("../data/data_participants.csv")

items <- select(df, contains("_Q"))
byfacet <- items[df$Condition=="Dimensions",]
bymodality <- items[df$Condition=="Domains",]
byrandom <- items[df$Condition=="Random",]

Code

labels <- list(
  Sexual_State_Q1 = "I always know when I am sexually aroused",
  Sexual_State_Q2 = "I always feel in my body if I am sexually aroused",
  Sexual_State_Q3 = "My body is always in the same specific state  when I am sexually aroused",
  Sexual_State_Q4 = "Being sexually aroused is a very different bodily feeling compared to other states (e.g., feeling anxious, relaxed, or after physical exercise)",
  Sexual_State_Q5 = "I can always tell that I am sexually aroused from the way I feel inside",
  Sexual_State_A = "I always know that I am attentively doing a study",
  Sexual_Cardiac_Q1 = "When I am sexually aroused, I often feel changes in the way my heart beats (e.g., faster or stronger)",
  Sexual_Respiratory_Q1 = "When I am sexually aroused, I often feel changes in my breathing (e.g., faster, shallower, or less regular)",
  Sexual_Gastric_Q1 = "When I am sexually aroused, I often feel changes in my stomach (e.g., bloating, rumbling, discomfort)",
  Sexual_Gastric_Q2 = "When I am sexually aroused, I often feel butterflies in my stomach",
  Sexual_Genital_Q1 = "When I am sexually aroused, I often notice specific sensations in my genital area (e.g., tingling, warmth, wetness, stiffness, pulsations)",
  Sexual_Genital_Q2 = "During sex or masturbation, I often feel very strong sensations coming from my genital areas",
  Sexual_SkinThermo_Q1 = "When I am sexually aroused, I often feel changes in my temperature (e.g., feeling warm or cold)",
  Sexual_SkinThermo_Q2 = "When I am sexually aroused, I often feel like some areas of my skin become sweaty (e.g., palms, back, forehead)",
  Sexual_SkinThermo_Q3 = "When I am sexually aroused, I often feel my mouth becoming dry",
  Sexual_ColonBladder_Q1 = "When I am sexually aroused, I often feel like I need to relieve myself by urinating or defecating",
  Sexual_ColonBladder_Q2 = "During sex or masturbation, I often feel like I need to relieve myself by urinating or defecating",
  Anxious_State_Q1 = "I always know when I am anxious",
  Anxious_State_Q2 =  "I always feel in my body if I am anxious",
  Anxious_State_Q3 = "My body is always in the same specific state when I am anxious",
  Anxious_State_Q4 = "Being anxious is a very different bodily feeling compared to other states (e.g., feeling sexually aroused, relaxed or after exercise)",
  Anxious_State_Q5 = "I often realize that I am anxious only when others tell me",
  Anxious_Cardiac_Q1 = "When I am anxious, I often feel changes in the way my heart beats (e.g., faster or stronger)",
  Anxious_Respiratory_Q1 = "When I am anxious, I often feel changes in my breathing (e.g., faster, shallower, or less regular)",
  Anxious_Gastric_Q1 = "When I am anxious, I often feel changes in my stomach (e.g., bloating, rumbling, discomfort)",
  Anxious_Genital_Q1 = "When I am anxious, I often notice specific sensations in my genital area (e.g., contractions, dryness)",
  Anxious_SkinThermo_Q1 = "When I am anxious, I often feel changes in my temperature (e.g., feeling warm or cold)",
  Anxious_SkinThermo_Q2 = "When I am anxious, I often feel like some areas of my skin become sweaty (e.g., palms, back, forehead)",
  Anxious_SkinThermo_Q3 = "When I am anxious, I often feel my mouth becoming dry",
  Anxious_SkinThermo_Q4 = "When I am anxious, I often have difficulty swallowing",
  Anxious_SkinThermo_A = "Even if I am anxious, I should now answer all the way to the left",
  Anxious_ColonBladder_Q1 = "When I am anxious, I often feel like I need to relieve myself by urinating or defecating",
  Nociception_State_Q1 = "I always feel in my body if I am ill",
  Nociception_State_Q2 =  "I can easily tell when I am feeling ill (e.g., nauseous or sick)",
  Nociception_Cardiac_Q1 = "I often feel painful sensations coming from my heart",
  Nociception_Cardiac_Q2 = "I often experience painful sensations coming from my chest",
  Nociception_Respiratory_Q1 = "I often feel like I have difficulties breathing normally",
  Nociception_Respiratory_Q2 = "I often feel like I can't get enough oxygen by breathing normally",
  Nociception_Gastric_Q1 = "I often feel pain in my stomach",
  Nociception_Genital_Q1 = "My genital organs are very sensitive to pleasant stimulations",
  Nociception_Genital_Q2 = "My genital organs are very sensitive to painful stimulations",
  Nociception_SkinThermo_Q1 = "My skin is very sensitive to painful stimulations (e.g., pinching)",
  Nociception_SkinThermo_Q2 = "My skin is very sensitive to pleasant stimulations (e.g., caressing)",
  Nociception_SkinThermo_Q3 = "Changes in temperature (e.g., feeling feverish or cold) are the first things I notice when I am becoming ill",
  Nociception_ColonBladder_Q1 = "I often experience a pleasant sensation when relieving myself when urinating or defecating)",
  Nociception_ColonBladder_Q2 = "I often experience painful sensations when relieving myself when urinating or defecating",
  Nociception_ColonBladder_A = "I often experience sensations, and I will answer zero to this question",
  Sensitivity_State_Q1 =  "I always know when I am relaxed",
  Sensitivity_State_Q2 =  "I always feel in my body if I am relaxed",
  Sensitivity_State_Q3 = "My body is always in the same specific state when I am relaxed",
  Sensitivity_State_Q4 = "Being relaxed is a very different bodily feeling compared to other states (e.g., feeling anxious, sexually aroused or after exercise)",
  Sensitivity_State_Q5 = "When something important is happening in my life, I can feel it in my body",
  Sensitivity_Cardiac_Q1 = "In general, I am very sensitive to changes in my heart rate",
  Sensitivity_Cardiac_Q2 = "I often notice changes in my heart rate",
  Sensitivity_Cardiac_Q3 = "I can notice even very subtle changes in the way my heart beats",
  Sensitivity_Cardiac_Q4 = "I am always very aware of my heartbeats, even when I am calm",
  Sensitivity_Cardiac_Q5 = "I only notice my heart when it is thumping in my chest",
  Sensitivity_Cardiac_Q6 = "I often try to feel my heart with my hands (e.g., by putting my hand on my chest)",
  Sensitivity_Cardiac_Q7 = "When something important is happening in my life, I can feel immediately feel changes in my heart rate",
  Sensitivity_Cardiac_A = "In general, I am very sensitive and attentive to the questions I am currently answering",
  Sensitivity_Respiratory_Q1 = "In general, I am very sensitive to changes in my breathing",
  Sensitivity_Respiratory_Q = "I often notice changes in my breathing",
  Sensitivity_Respiratory_Q3 = "I can notice even very subtle changes in my breathing",
  Sensitivity_Respiratory_Q4 = "I am always very aware of how I am breathing, even when I am calm",
  Sensitivity_Respiratory_Q5 = "I often only notice how I am breathing when it becomes loud",
  Sensitivity_Respiratory_Q6 = "I often only notice how I am breathing when my breathing becomes shallow or irregular",
  Sensitivity_Respiratory_Q7 = "When something important is happening in my life, I can immediately feel changes in my breathing",
  Sensitivity_Gastric_Q1 = "In general, I am very sensitive to what my stomach is doing",
  Sensitivity_Gastric_Q2 = "I can notice even very subtle changes in what my stomach is doing",
  Sensitivity_Gastric_Q3 = "I am always very aware of what my stomach is doing, even when I am calm",
  Sensitivity_Gastric_Q4 = "I often check the smell of my own breath",
  Sensitivity_Gastric_Q5 = "I often check the smell of my farts",
  Sensitivity_Gastric_Q6 = "I often pay attention to the noises of my stomach",
  Sensitivity_Gastric_A = "I often pay attention to the answers I am giving",
  Sensitivity_Genital_Q1 = "In general, I am very sensitive to changes in my genital organs",
  Sensitivity_Genital_Q2 = "I can notice even very subtle changes in the state of my genital organs",
  Sensitivity_Genital_Q3 = "I am always very aware of the state of my genital organs, even when I am calm",
  Sensitivity_SkinThermo_Q1 = "In general, my skin is very sensitive",
  Sensitivity_SkinThermo_Q2 = "I can notice even very subtle stimulations to my skin (e.g., very light touches)",
  Sensitivity_SkinThermo_Q3 =  "I can notice even very subtle changes if my skin becomes dry or sweaty",
  Sensitivity_SkinThermo_Q4 ="I am always very aware if my hands and feet are cold or warm",
  Sensitivity_SkinThermo_Q5 = "I often check the smell of my armpits",
  Sensitivity_SkinThermo_Q6 = "I am very prone to having goosebumps",
  Sensitivity_SkinThermo_Q7 ="My skin is susceptible to itchy fabrics and materials",
  Sensitivity_SkinThermo_Q8 = "I enjoy the sensations of touching different materials (e.g., soft fabrics, wooden objects, smooth surfaces)",
  Sensitivity_ColonBladder_Q1 = "In general, I am very aware of the sensations that are happening when I am defecating",
  Sensitivity_ColonBladder_Q2 = "In general, I am very aware of the sensations that are happening when I am urinating",
  Sensitivity_ColonBladder_Q3 = "I often check the colour of my urine",
  Sensitivity_ColonBladder_Q4 =  "I often check the colour of my faeces",
  Accuracy_State_Q1 =  "I can always accurately feel when I am about to cough",
  Accuracy_State_Q2 = "I can always accurately feel when I am about to sneeze",
  Accuracy_State_Q3 = "I can always accurately feel when I am about to vomit",
  Accuracy_State_Q4 = "I can always accurately feel when I am starting to be hungry",
  Accuracy_State_Q5 = "I can always accurately feel when I am starting to be thirsty",
  Accuracy_Cardiac_Q1 = "I can always accurately feel if my heart rate is slow or fast",
  Accuracy_Cardiac_Q2 = "I sometimes feel like my heart is racing or beating faster than usual, but when I check my pulse, it is not as intense as I thought",
  Accuracy_Respiratory_Q1 = "I can always accurately feel how I am breathing (e.g., fast or slow, deep or shallow)",
  Accuracy_Respiratory_A = "I can always accurately answer to the left on this question to show that I am reading it",
  Accuracy_Gastric_Q1 = "I can always accurately feel when I am about to fart",
  Accuracy_Gastric_Q2 = "I can always accurately feel when I am about to burp",
  Accuracy_Gastric_Q3 = "I often feel thirsty even if I drank recently",
  Accuracy_Gastric_Q4 = "I don't always feel the need to drink until I am really thirsty",
  Accuracy_Gastric_Q5 = "I often feel hungry even if I ate recently",
  Accuracy_Gastric_Q6 = "I don't always feel the need to eat until I am really hungry",
  Accuracy_Gastric_Q7 = "I often sneeze suddenly without feeling the need building up",
  Accuracy_Gastric_Q8 = "I sometimes feel that burping will produce some relief but then it doesn't",
  Accuracy_Genital_Q1 = "I can always accurately perceive if my genital organs are in a state of arousal (e.g., hard, wet, pulsating)",
  Accuracy_Genital_Q2 = "I sometimes feel like I am sexually aroused, but when I try to satisfy the feeling, I realise that I am not as sexually aroused as I initially thought",
  Accuracy_Genital_A = "I can always accurately perceive that to this question I should answer the lowest option",
  Accuracy_SkinThermo_Q1 = "I can always accurately feel when something is going to be itchy",
  Accuracy_SkinThermo_Q2 = "I can always accurately feel when I start to have a fever",
  Accuracy_SkinThermo_Q3 = "When something touches my skin, I can always accurately feel if it's hot or cold",
  Accuracy_SkinThermo_Q4 = "I sometimes feel my skin itching, but when I scratch it, it doesn't produce the relief I expected",
  Accuracy_ColonBladder_Q1 = "I often feel the need to urinate even when my bladder is not full",
  Accuracy_ColonBladder_Q2 = "I don't always feel the need to urinate until my bladder is very full",
  Accuracy_ColonBladder_Q3 = "I often feel the need to defecate even when my intestine is not full",
  Accuracy_ColonBladder_Q4 = "I don't always feel the need to defecate until my intestine is very full",
  Accuracy_ColonBladder_Q5 = "I sometimes feel like I need to urinate or defecate but when I go to the bathroom I produce less than I expected",
  Confusion_State_Q1 = "Sometimes I can't tell if the sensations in my body are good or bad",
  Confusion_State_Q2 = "Sometimes I am confused about what sensations in my body mean",
  Confusion_Cardiac_Q1 = "Sometimes my heart starts racing and I often don't know why",
  Confusion_Respiratory_Q1 = "Sometimes my breathing becomes erratic or shallow and I often don't know why",
  Confusion_Gastric_Q1 = "Sometimes I feel negative and realise after eating that I was just hungry",
  Confusion_Gastric_Q2 = "Sometimes I don't realise I was hungry until I ate something",
  Confusion_Genital_Q1 = "Sometimes I notice arousal in my genital areas (e.g., stiffness, wetness) when I am not feeling sexually aroused",
  Confusion_SkinThermo_Q1 = "Sometimes I have sensations on my skin (e.g., itches, goosebumps) without any clear cause",
  Confusion_ColonBladder_Q1 = "Sometimes I am not sure whether I need to go to the toilet or not (to urinate or defecate)",
  Confusion_ColonBladder_A = "Sometimes I notice that I need to answer all the way to the right"
)

Item Correlation

Full Sample

Code

make_heatmap <- function(items, interactive=TRUE, title="Correlation Matrix") {
  fn <- if(interactive) heatmaply::heatmaply else heatmaply::ggheatmap

  fn(
    cor(items),
    symm = TRUE,
    colors=heatmaply::cool_warm,
    show_dendrogram =c(FALSE, TRUE),
    main=title,
    showticklabels = FALSE,
    hide_colorbar = TRUE,
    k_col = 4,
    # k_row = 4,
    limits = c(-1, 1)
    )
}

make_heatmap(items, title="Full Sample")

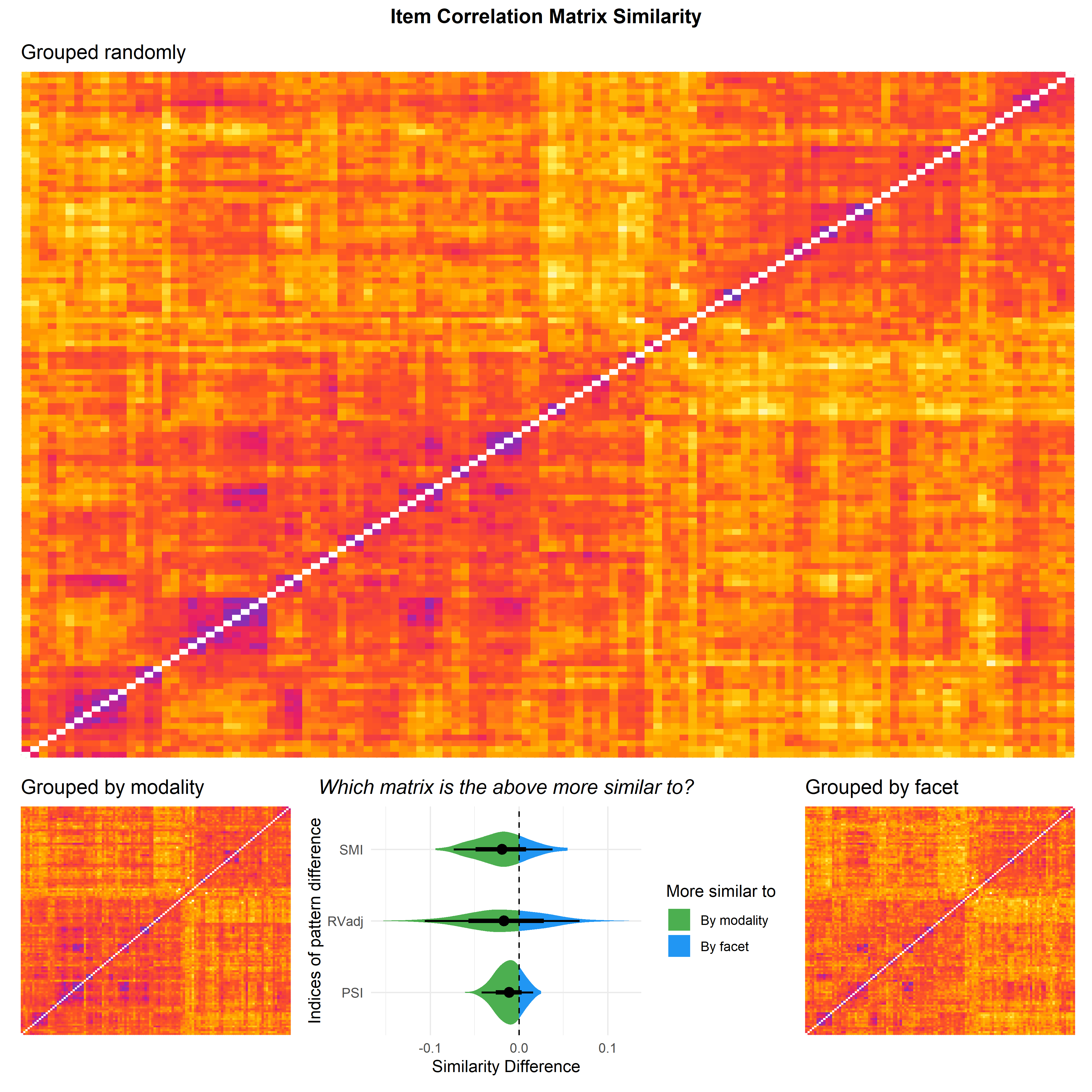

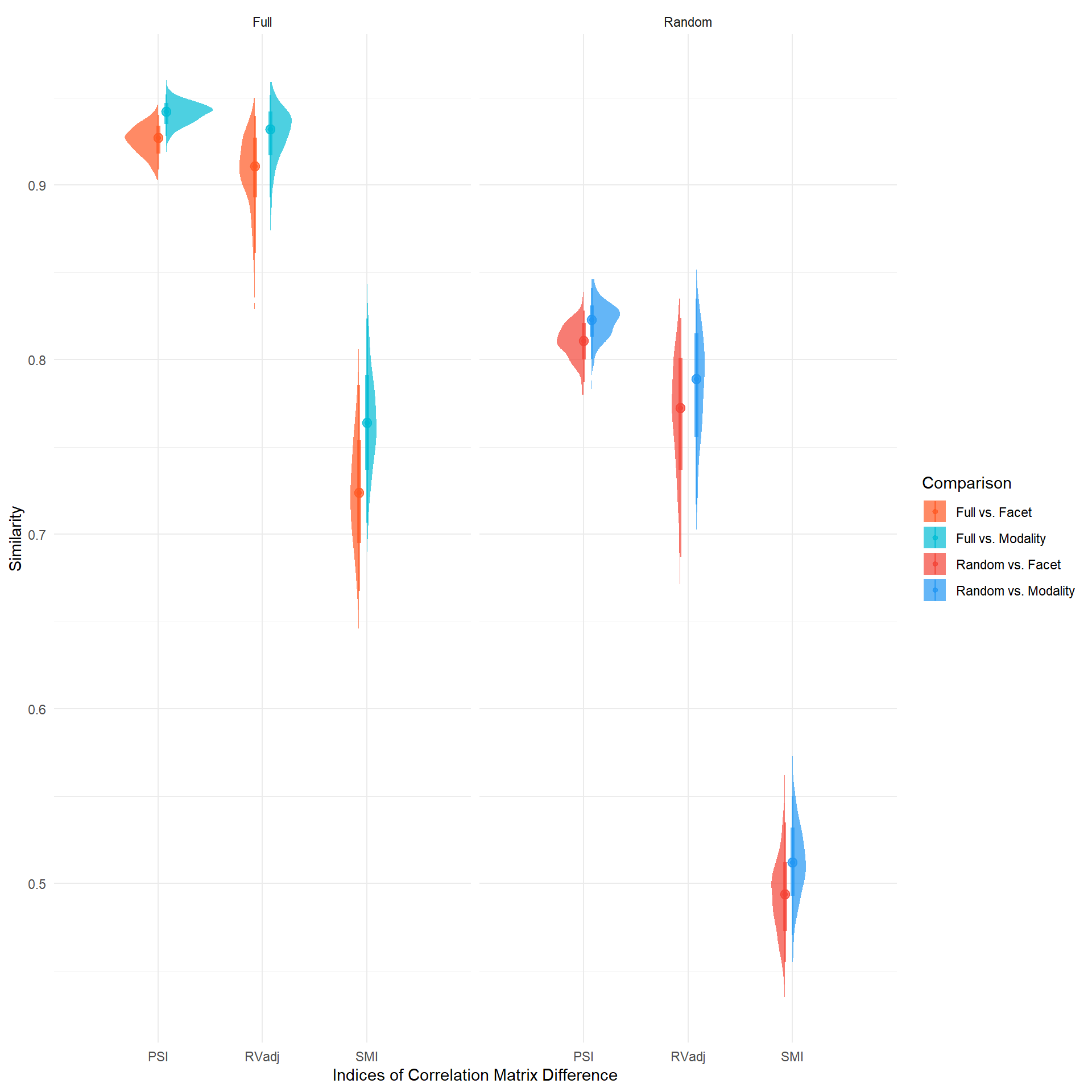

Similarity

Code

bootstrap_similarity <- function(df) {
  rez <- data.frame()
  for(i in 1:500) {
    idx <- sample(1:nrow(df), nrow(df), replace=TRUE)
    newdata <- df[idx,]
    items <- select(df, contains("_Q"))
    byfacet <- items[newdata$Condition=="Dimensions",]
    bymodality <- items[newdata$Condition=="Domains",]
    byrandom <- items[newdata$Condition=="Random",]

    rez <- rbind(
      MatrixCorrelation::allCorrelations(cor(byrandom), cor(byfacet),
                                         ncomp1=10, ncomp2=10, plot=FALSE),
      MatrixCorrelation::allCorrelations(cor(byrandom), cor(bymodality),
                                         ncomp1=10, ncomp2=10, plot=FALSE),
      MatrixCorrelation::allCorrelations(cor(items), cor(byfacet),
                                         ncomp1=10, ncomp2=10, plot=FALSE),
      MatrixCorrelation::allCorrelations(cor(items), cor(bymodality),
                                         ncomp1=10, ncomp2=10, plot=FALSE)) |>
      as.data.frame() |>
      mutate(
        Comparison = c("Random vs. Facet", "Random vs. Modality", "Full vs. Facet", "Full vs. Modality"),
        Sample = c("Random", "Random", "Full", "Full"),
        Iteration = i) |>
      mutate(d_PSI = diff(PSI), d_RVadj = diff(RVadj), d_SMI = diff(SMI), .by="Sample") |>
      rbind(rez)
  }
  rez
}

rez <- bootstrap_similarity(df)

Code

rez |>
  summarize(PSI = mean(PSI),
            p_PSI = as.numeric(bayestestR::pd(d_PSI, as_p=TRUE)),
            RVadj = mean(RVadj),
            p_RVadj = as.numeric(bayestestR::pd(d_RVadj, as_p=TRUE)),
            SMI = mean(SMI),
            p_SMI = as.numeric(bayestestR::pd(d_SMI, as_p=TRUE)),
            .by = "Comparison")

           Comparison      PSI p_PSI    RVadj p_RVadj      SMI p_SMI
1    Random vs. Facet 0.810526 0.448 0.768536   0.744 0.493086 0.524
2 Random vs. Modality 0.822352 0.448 0.784162   0.744 0.512444 0.524
3      Full vs. Facet 0.925638 0.212 0.908974   0.444 0.724340 0.436
4   Full vs. Modality 0.941368 0.212 0.929352   0.444 0.764880 0.436

Code

rez |>
  pivot_longer(-c("Comparison", "Sample", "Iteration")) |>
  filter(name %in% c("PSI", "RVadj", "SMI")) |>
  mutate(side = ifelse(str_detect(Comparison, "Facet"), "left", "right")) |>
  ggplot(aes(x=name, y=value, fill=Comparison, color=Comparison)) +
  ggdist::stat_halfeye(aes(side=side), position=position_dodge(width=0.3), alpha=0.7) +
  facet_wrap(~Sample) +
  scale_fill_manual(values=c("Random vs. Facet"="#F44336", "Random vs. Modality"="#2196F3", "Full vs. Facet"="#FF5722", "Full vs. Modality"="#00BCD4")) +
  scale_color_manual(values=c("Random vs. Facet"="#F44336", "Random vs. Modality"="#2196F3", "Full vs. Facet"="#FF5722", "Full vs. Modality"="#00BCD4")) +
  labs(x="Indices of Correlation Matrix Difference", y="Similarity") +
  theme_minimal()

Code

p_sim <- rez |>
  pivot_longer(-c("Comparison", "Sample", "Iteration")) |>
  filter(str_detect(name, "d_") & str_detect(Comparison, "Facet")) |>
  filter(Sample == "Random") |>
  mutate(name = str_remove(name, "d_"), value = -value) |> # Reverse score for figure aesthetics
  ggplot(aes(x=value, y=name)) +
  ggdist::stat_eye(aes(fill = after_stat(x < 0))) +
  geom_vline(xintercept=0, linetype="dashed") +
  labs(x="Similarity Difference", y="Indices of pattern difference",
       title="Which matrix is the above more similar to?",
       fill="More similar to") +
  theme_minimal() +
  scale_fill_manual(values=c("TRUE"="#4CAF50", "FALSE"="#2196F3"),
                    labels = c("By facet", "By modality"),
                    guide = guide_legend(reverse = TRUE)) +
  theme(plot.title = element_text(hjust = 0.5, face="italic"))


r <- correlation::cor_sort(cor(byrandom))
order <- colnames(r)

make_corplot <- function(data, order) {
  rownames_to_column(as.data.frame(cor(data)), "item") |>
    pivot_longer(-item) |>
    mutate(item = fct_relevel(item, order),
           name = fct_relevel(name, order)) |>
    ggplot(aes(x=name, y=item, fill=value)) +
    geom_tile() +
    # scale_fill_gradient2(low="blue", high="red", mid="white", midpoint=0, values=c(-1, 0, 1)) +
    scale_fill_gradientn(
      colors=c("blue", "white", "#FFEE58", "#FFC107", "#FF9800", "#FF5722",
               "#F44336", "#E91E63", "#9C27B0", "#8231B4", "#673AB7", "white"),
      values=c(-1, seq(0, 1, 0.1))) +
    theme_minimal() +
    theme(axis.text = element_blank(),
          axis.title = element_blank(),
          legend.position = "none")
}


p1 <- make_corplot(byrandom, order) +
  ggtitle("Grouped randomly")
p2 <- make_corplot(byfacet, order) +
  ggtitle("Grouped by facet")
p3 <- make_corplot(bymodality, order) +
  ggtitle("Grouped by modality")

fig1 <- p1 / (p3 | p_sim | p2) +
  patchwork::plot_layout(heights=c(3, 1)) +
  patchwork::plot_annotation(
    title="Item Correlation Matrix Similarity",
    theme = theme(plot.title = element_text(hjust = 0.5, face="bold")))
fig1

Code

ggsave("figures/fig1_correlations.png", fig1, scale = 1.25, width=2100, height=2100, dpi=300, units = "px")

Item Selection

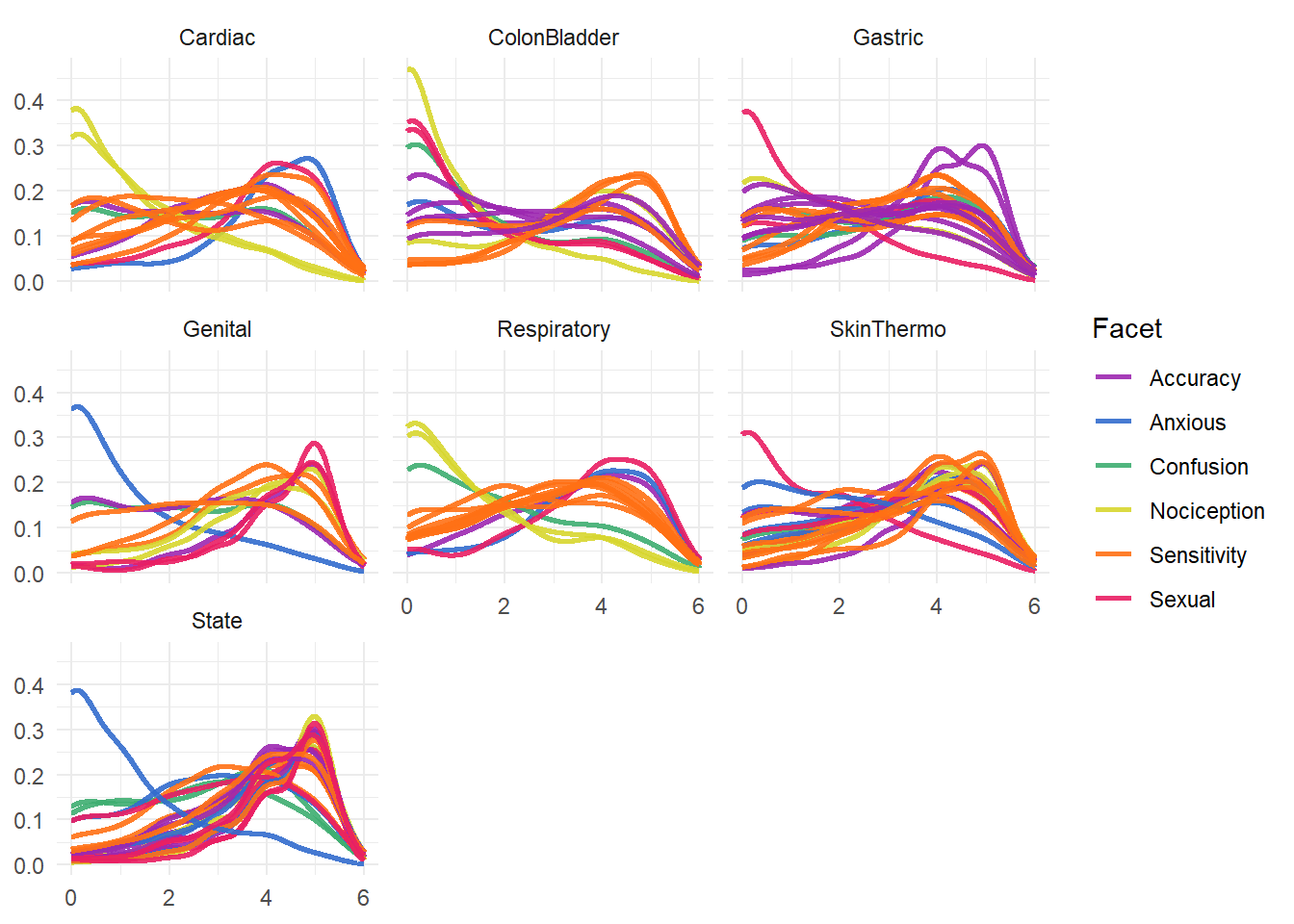

Distributions

Code

items |>
  bayestestR::estimate_density(method="kernSmooth") |>
  separate(Parameter, into=c("Facet", "Modality", "Item"), sep="_") |>
  ggplot(aes(x=x, y=y)) +
  geom_line(aes(color=Facet, group=interaction(Facet, Item)), linewidth=1, alpha=0.9) +
  facet_wrap(~Modality) +
  theme_minimal() +
  scale_color_material_d(palette = "rainbow") +
  theme(axis.title.x = element_blank(),
        axis.title.y = element_blank())

Unique Variable Analysis (UVA)

Code

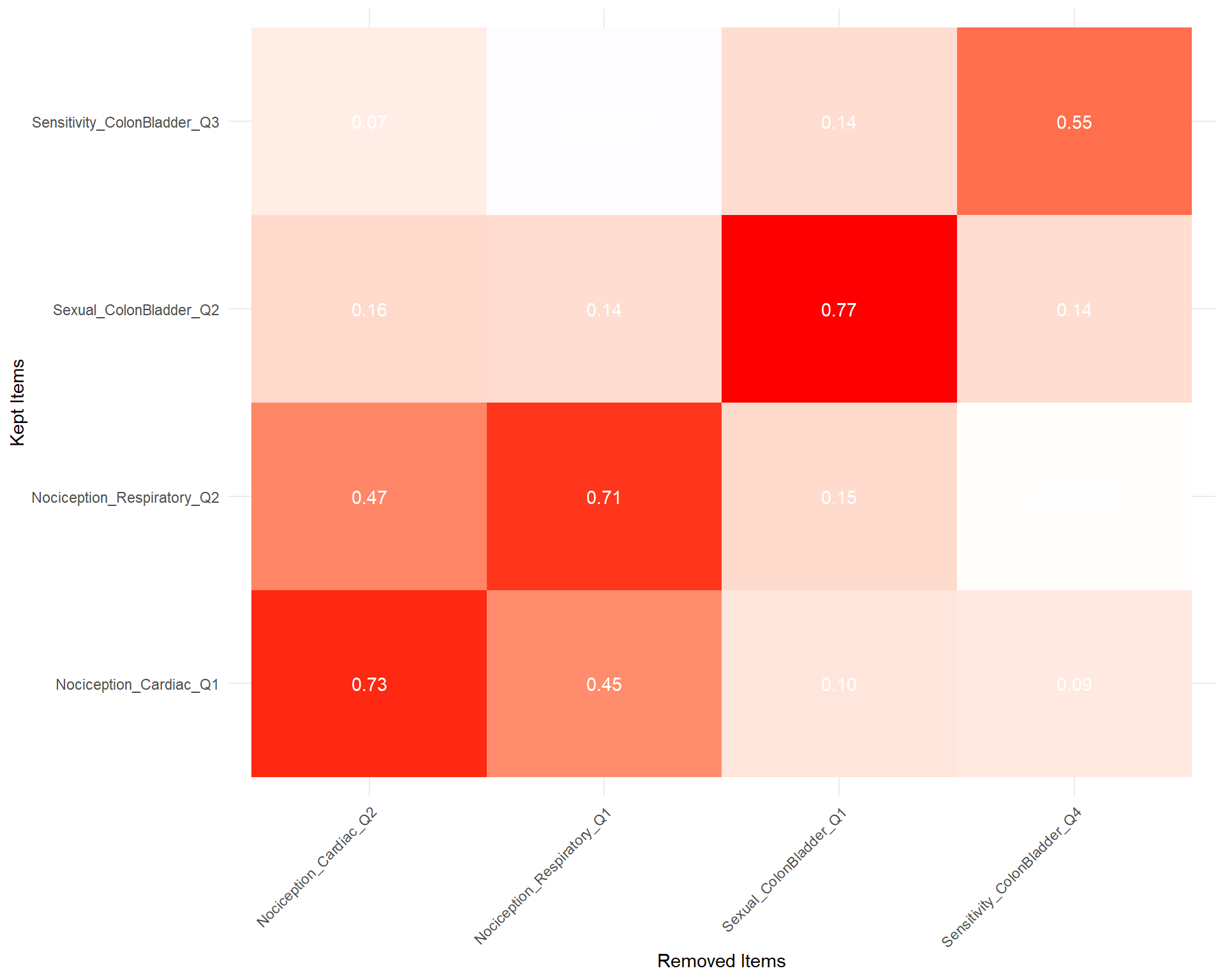

uva <- EGAnet::UVA(items, cut.off = 0.25, reduce.method="remove", verbose=FALSE)

toremove1 <- unique(uva$keep_remove$remove)
keep <- uva$keep_remove$keep[!uva$keep_remove$keep %in% toremove1]

sorted <- correlation::cor_sort(cor(items[toremove1],items[keep]))

correlation::correlation(items[toremove1], items[keep]) |>
  mutate(Parameter1 = fct_relevel(Parameter1, rownames(sorted)),
         Parameter2 = fct_relevel(Parameter2, colnames(sorted))) |>
  ggplot(aes(x=Parameter1, y=Parameter2, fill=r)) +
  geom_tile() +
  geom_text(aes(label=insight::format_value(r)), color="white") +
  scale_fill_gradient2(low="blue", high="red", mid="white", midpoint=0, guide="none") +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 45, hjust = 1)) +
  labs(x="Removed Items", y="Kept Items", fill="Correlation")

Code

items <- select(items, -all_of(toremove1))
byfacet <- select(byfacet, -all_of(toremove1))
bymodality <- select(bymodality, -all_of(toremove1))
byrandom <- select(byrandom, -all_of(toremove1))

We removed 4 items (Sexual_ColonBladder_Q1, Nociception_Respiratory_Q1, Nociception_Cardiac_Q2, Sensitivity_ColonBladder_Q4) based on Unique Variable Analysis (UVA).

Cluster Stability

Code

ega1 <- bootEGA(
  items,
  EGA.type = "hierEGA",
  model = "glasso",  # BGGM
  algorithm = "leiden",
  type="resampling",
  plot.itemStability=FALSE,
  typicalStructure=TRUE,
  plot.typicalGraph=FALSE,
  iter=500,
  seed=3, ncores = 4)

save(ega1, file="models/ega1.RData")

Code

load("models/ega1.RData")

# EGAnet::dimensionStability(ega)

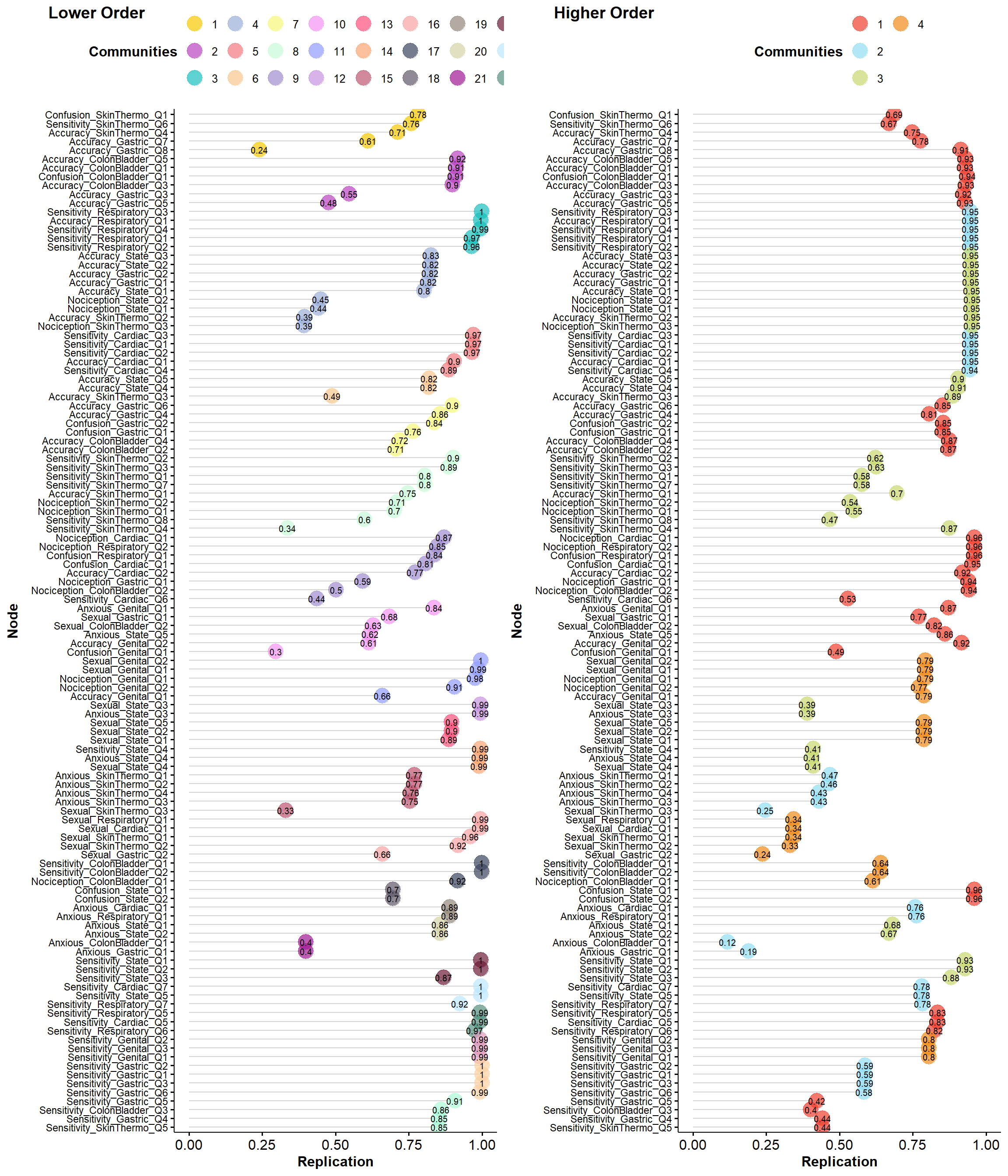

itemstability <- EGAnet::itemStability(ega1, IS.plot=FALSE)
plot(itemstability)

Code

make_loadingtable <- function(x) {
  t <- as.data.frame(x) |>
    datawizard::data_addprefix("C")
  t$Cluster <- colnames(t)[max.col(t, ties.method='first')]

  t |>
    rownames_to_column(var="Item") |>
    rowwise() |>
    mutate(Max = max(c_across(-c(Item, Cluster)))) |>
    arrange(Cluster, desc(Max)) |>
    as.data.frame()
}

itemstability_table <- make_loadingtable(itemstability$lower_order$item.stability$all.dimensions)

# Remove items
toremove2 <- filter(itemstability_table, Max < 0.8)$Item

We removed 40 items (Confusion_SkinThermo_Q1, Sensitivity_SkinThermo_Q6, Accuracy_SkinThermo_Q4, Accuracy_Gastric_Q7, Accuracy_Gastric_Q8, Accuracy_Gastric_Q3, Accuracy_Gastric_Q5, Nociception_State_Q2, Nociception_State_Q1, Accuracy_SkinThermo_Q2, Nociception_SkinThermo_Q3, Accuracy_SkinThermo_Q3, Confusion_Gastric_Q1, Accuracy_ColonBladder_Q4, Accuracy_ColonBladder_Q2, Accuracy_SkinThermo_Q1, Nociception_SkinThermo_Q2, Nociception_SkinThermo_Q1, Sensitivity_SkinThermo_Q8, Sensitivity_SkinThermo_Q4, Accuracy_Cardiac_Q2, Nociception_Gastric_Q1, Nociception_ColonBladder_Q2, Sensitivity_Cardiac_Q6, Sexual_Gastric_Q1, Sexual_ColonBladder_Q2, Anxious_State_Q5, Accuracy_Genital_Q2, Accuracy_Genital_Q1, Anxious_SkinThermo_Q1, Anxious_SkinThermo_Q2, Anxious_SkinThermo_Q4, Anxious_SkinThermo_Q3, Sexual_SkinThermo_Q3, Sexual_Gastric_Q2, Confusion_State_Q1, Confusion_State_Q2, Anxious_ColonBladder_Q1, Anxious_Gastric_Q1, Confusion_Genital_Q1) that had a low stability (< 0.8).

Code

toremove2b <- itemstability_table |>
  filter(!Item %in% toremove2) |>
  mutate(Item, n=n(), .by="Cluster", .keep="used") |>
  filter(n < 3) |>  # Remove small clusters
  pull(Item)

toremove2 <- c(toremove2, toremove2b)

We removed 9 items (Accuracy_State_Q5, Accuracy_State_Q4, Anxious_Genital_Q1, Sexual_State_Q3, Anxious_State_Q3, Anxious_Cardiac_Q1, Anxious_Respiratory_Q1, Anxious_State_Q1, Anxious_State_Q2) that were in clusters with less than 3 items after the first removal.

Code

# plot(itemstability)

Code

itemstability_table |>
  select(-Cluster, -Max) |>
  gt::gt() |>
  gt::data_color(columns=-Item,
                 method = "numeric",
                 palette = c("white", "orange", "green"),
                 domain = c(0, 1)) |>
  gt::data_color(columns=Item, fn=\(x) ifelse(x %in% toremove2, "#FFEBEE", "white")) |>
  gt::tab_header(
    title = gt::md("**Item Stability**"),
    subtitle = "Proportion of times an item is assigned to the same cluster"
  ) |>
  gt::fmt_number(columns=-Item, decimals=3)

Item Stability
Proportion of times an item is assigned to the same cluster
Item	C01	C02	C03	C04	C05	C06	C07	C08	C09	C10	C11	C12	C13	C14	C15	C16	C17	C18	C19	C20	C21	C22	C23	C24	C25	C26	C27	C28	C29	C30	C31	C32	C33	C34
Confusion_SkinThermo_Q1	0.782	0.002	0.000	0.000	0.000	0.000	0.000	0.182	0.010	0.004	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.002	0.000	0.006	0.004	0.002	0.000
Sensitivity_SkinThermo_Q6	0.758	0.000	0.000	0.000	0.000	0.000	0.000	0.182	0.010	0.010	0.000	0.000	0.000	0.000	0.004	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.006	0.000	0.000	0.000	0.002	0.006	0.008	0.000	0.006	0.004	0.002	0.000
Accuracy_SkinThermo_Q4	0.712	0.046	0.000	0.000	0.000	0.000	0.014	0.138	0.014	0.030	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.012	0.022	0.006	0.002	0.000	0.000	0.000
Accuracy_Gastric_Q7	0.610	0.148	0.000	0.004	0.004	0.000	0.004	0.068	0.012	0.082	0.000	0.000	0.000	0.004	0.002	0.004	0.000	0.008	0.000	0.000	0.000	0.000	0.000	0.002	0.008	0.000	0.008	0.012	0.014	0.006	0.000	0.000	0.000	0.000
Accuracy_Gastric_Q8	0.240	0.210	0.000	0.000	0.000	0.000	0.012	0.016	0.108	0.112	0.000	0.002	0.000	0.000	0.000	0.000	0.002	0.050	0.002	0.002	0.000	0.000	0.000	0.124	0.000	0.000	0.038	0.024	0.042	0.012	0.004	0.000	0.000	0.000
Accuracy_ColonBladder_Q5	0.002	0.916	0.000	0.000	0.000	0.000	0.024	0.000	0.014	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.026	0.012	0.000	0.002	0.000	0.000
Accuracy_ColonBladder_Q1	0.000	0.912	0.000	0.000	0.000	0.000	0.032	0.000	0.014	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.024	0.010	0.000	0.002	0.000	0.000
Confusion_ColonBladder_Q1	0.000	0.910	0.000	0.000	0.000	0.000	0.010	0.000	0.052	0.008	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.012	0.002	0.000	0.002	0.000	0.000
Accuracy_ColonBladder_Q3	0.000	0.898	0.000	0.000	0.000	0.000	0.012	0.000	0.042	0.018	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.010	0.014	0.004	0.000	0.000	0.000	0.000
Accuracy_Gastric_Q3	0.014	0.546	0.000	0.000	0.000	0.000	0.014	0.000	0.180	0.012	0.000	0.000	0.000	0.000	0.010	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.070	0.088	0.058	0.006	0.000	0.000	0.000
Accuracy_Gastric_Q5	0.026	0.476	0.000	0.000	0.000	0.000	0.092	0.000	0.166	0.016	0.000	0.000	0.000	0.000	0.004	0.000	0.000	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.068	0.086	0.052	0.006	0.000	0.000	0.000
Sensitivity_Respiratory_Q3	0.000	0.000	0.998	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000
Accuracy_Respiratory_Q1	0.000	0.000	0.996	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.002	0.000	0.000	0.000	0.000	0.000
Sensitivity_Respiratory_Q4	0.000	0.000	0.994	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.002	0.000	0.000	0.002	0.000	0.000
Sensitivity_Respiratory_Q1	0.000	0.000	0.966	0.000	0.010	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.006	0.002	0.002	0.006	0.004	0.004
Sensitivity_Respiratory_Q2	0.000	0.000	0.964	0.000	0.012	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.006	0.002	0.002	0.006	0.004	0.004
Accuracy_State_Q3	0.000	0.000	0.000	0.826	0.000	0.000	0.000	0.008	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.112	0.046	0.004	0.002	0.000	0.000	0.000
Accuracy_State_Q2	0.000	0.000	0.000	0.824	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.134	0.038	0.004	0.000	0.000	0.000	0.000
Accuracy_Gastric_Q2	0.000	0.000	0.000	0.822	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.134	0.040	0.004	0.000	0.000	0.000	0.000
Accuracy_Gastric_Q1	0.000	0.000	0.000	0.816	0.000	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.136	0.040	0.004	0.000	0.000	0.000	0.000
Accuracy_State_Q1	0.000	0.000	0.000	0.802	0.000	0.032	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.132	0.032	0.002	0.000	0.000	0.000	0.000
Nociception_State_Q2	0.000	0.000	0.000	0.450	0.000	0.000	0.000	0.008	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.336	0.084	0.060	0.040	0.020	0.002	0.000
Nociception_State_Q1	0.000	0.000	0.000	0.442	0.000	0.002	0.000	0.016	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.004	0.000	0.000	0.000	0.000	0.000	0.336	0.080	0.058	0.038	0.020	0.002	0.000
Accuracy_SkinThermo_Q2	0.000	0.000	0.000	0.394	0.000	0.000	0.000	0.016	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.376	0.148	0.038	0.022	0.006	0.000	0.000
Nociception_SkinThermo_Q3	0.000	0.000	0.000	0.392	0.000	0.002	0.000	0.016	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.376	0.148	0.038	0.022	0.006	0.000	0.000
Sensitivity_Cardiac_Q3	0.000	0.000	0.028	0.000	0.970	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_Cardiac_Q1	0.000	0.000	0.028	0.000	0.970	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_Cardiac_Q2	0.000	0.000	0.034	0.000	0.966	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Accuracy_Cardiac_Q1	0.000	0.000	0.094	0.000	0.904	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_Cardiac_Q4	0.000	0.000	0.106	0.000	0.886	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.002	0.000	0.000	0.000	0.000	0.000
Accuracy_State_Q5	0.000	0.000	0.000	0.112	0.000	0.820	0.036	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.024	0.004	0.000	0.000	0.000	0.000	0.000
Accuracy_State_Q4	0.000	0.000	0.000	0.114	0.000	0.818	0.036	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.026	0.004	0.000	0.000	0.000	0.000	0.000
Accuracy_SkinThermo_Q3	0.000	0.000	0.000	0.182	0.000	0.488	0.008	0.136	0.008	0.000	0.010	0.000	0.000	0.006	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.084	0.058	0.012	0.004	0.000	0.000	0.000
Accuracy_Gastric_Q6	0.000	0.030	0.000	0.000	0.000	0.006	0.898	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.038	0.024	0.004	0.000	0.000	0.000	0.000
Accuracy_Gastric_Q4	0.000	0.060	0.000	0.000	0.000	0.072	0.856	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.006	0.002	0.000	0.000	0.000	0.000
Confusion_Gastric_Q2	0.002	0.026	0.000	0.000	0.000	0.002	0.838	0.002	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.046	0.034	0.022	0.016	0.008	0.002	0.000
Confusion_Gastric_Q1	0.022	0.020	0.000	0.000	0.000	0.000	0.764	0.016	0.034	0.006	0.000	0.000	0.000	0.000	0.004	0.000	0.000	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.046	0.034	0.018	0.018	0.008	0.002	0.000
Accuracy_ColonBladder_Q4	0.000	0.176	0.000	0.000	0.000	0.000	0.720	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.022	0.042	0.032	0.006	0.000	0.000	0.000
Accuracy_ColonBladder_Q2	0.000	0.184	0.000	0.000	0.000	0.002	0.706	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.022	0.044	0.034	0.006	0.000	0.000	0.000
Sensitivity_SkinThermo_Q2	0.000	0.000	0.000	0.018	0.000	0.006	0.000	0.902	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.030	0.022	0.002	0.010	0.002	0.004	0.004
Sensitivity_SkinThermo_Q3	0.000	0.000	0.000	0.026	0.000	0.002	0.000	0.886	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.038	0.022	0.004	0.010	0.002	0.004	0.004
Sensitivity_SkinThermo_Q1	0.020	0.000	0.000	0.004	0.000	0.000	0.000	0.804	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.054	0.026	0.026	0.040	0.016	0.008	0.002
Sensitivity_SkinThermo_Q7	0.020	0.000	0.000	0.004	0.000	0.000	0.000	0.804	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.054	0.026	0.026	0.040	0.016	0.008	0.002
Accuracy_SkinThermo_Q1	0.002	0.000	0.000	0.144	0.000	0.002	0.000	0.746	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.070	0.032	0.004	0.000	0.000	0.000	0.000
Nociception_SkinThermo_Q2	0.002	0.000	0.000	0.006	0.000	0.000	0.002	0.710	0.000	0.000	0.098	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.062	0.062	0.020	0.020	0.008	0.004	0.002
Nociception_SkinThermo_Q1	0.030	0.000	0.000	0.008	0.000	0.000	0.000	0.700	0.000	0.000	0.100	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.096	0.052	0.006	0.006	0.002	0.000	0.000
Sensitivity_SkinThermo_Q8	0.086	0.000	0.000	0.008	0.000	0.000	0.008	0.598	0.000	0.000	0.060	0.000	0.000	0.026	0.002	0.008	0.044	0.000	0.002	0.000	0.000	0.000	0.002	0.000	0.002	0.000	0.004	0.056	0.048	0.016	0.018	0.006	0.004	0.002
Sensitivity_SkinThermo_Q4	0.002	0.000	0.000	0.174	0.000	0.218	0.000	0.336	0.000	0.000	0.004	0.002	0.000	0.004	0.000	0.002	0.012	0.002	0.000	0.018	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.152	0.056	0.016	0.002	0.000	0.000	0.000
Nociception_Cardiac_Q1	0.000	0.022	0.000	0.000	0.002	0.000	0.000	0.000	0.870	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.052	0.036	0.012	0.006	0.000	0.000	0.000
Nociception_Respiratory_Q2	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.848	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.022	0.024	0.048	0.028	0.024	0.004	0.000
Confusion_Respiratory_Q1	0.002	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.838	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.008	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.020	0.022	0.048	0.030	0.024	0.004	0.000
Confusion_Cardiac_Q1	0.002	0.000	0.000	0.000	0.010	0.000	0.000	0.000	0.808	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.034	0.060	0.062	0.022	0.002	0.000	0.000
Accuracy_Cardiac_Q2	0.002	0.000	0.000	0.000	0.046	0.000	0.000	0.000	0.772	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.030	0.060	0.062	0.022	0.002	0.000	0.000
Nociception_Gastric_Q1	0.004	0.178	0.000	0.000	0.000	0.000	0.000	0.000	0.592	0.012	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.024	0.000	0.000	0.000	0.000	0.008	0.000	0.074	0.062	0.030	0.010	0.006	0.000	0.000
Nociception_ColonBladder_Q2	0.006	0.228	0.000	0.000	0.000	0.000	0.002	0.000	0.502	0.084	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.000	0.076	0.066	0.016	0.004	0.006	0.000	0.000
Sensitivity_Cardiac_Q6	0.004	0.006	0.004	0.000	0.364	0.000	0.000	0.000	0.436	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.144	0.018	0.014	0.002	0.004	0.000	0.000	0.000
Anxious_Genital_Q1	0.008	0.024	0.000	0.000	0.000	0.000	0.000	0.000	0.028	0.836	0.000	0.000	0.000	0.002	0.022	0.002	0.000	0.000	0.000	0.000	0.002	0.000	0.002	0.000	0.004	0.000	0.000	0.002	0.018	0.022	0.014	0.008	0.006	0.000
Sexual_Gastric_Q1	0.002	0.052	0.000	0.000	0.000	0.000	0.000	0.000	0.008	0.684	0.000	0.000	0.000	0.000	0.016	0.056	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.034	0.068	0.050	0.030	0.000	0.000	0.000
Sexual_ColonBladder_Q2	0.004	0.140	0.000	0.000	0.002	0.000	0.002	0.000	0.012	0.628	0.000	0.000	0.000	0.000	0.008	0.028	0.000	0.000	0.000	0.000	0.020	0.000	0.000	0.000	0.000	0.000	0.000	0.032	0.056	0.040	0.028	0.000	0.000	0.000
Anxious_State_Q5	0.038	0.026	0.000	0.000	0.000	0.000	0.000	0.000	0.084	0.618	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.040	0.008	0.066	0.000	0.000	0.002	0.024	0.000	0.000	0.000	0.014	0.028	0.020	0.016	0.008	0.006	0.000
Accuracy_Genital_Q2	0.204	0.032	0.000	0.000	0.000	0.000	0.000	0.004	0.052	0.614	0.000	0.002	0.000	0.000	0.002	0.000	0.000	0.010	0.000	0.000	0.000	0.000	0.000	0.002	0.004	0.000	0.000	0.010	0.032	0.026	0.006	0.000	0.000	0.000
Sexual_Genital_Q2	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.996	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.000	0.000	0.000
Sexual_Genital_Q1	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.986	0.000	0.010	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.000	0.000	0.000
Nociception_Genital_Q1	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.000	0.000	0.976	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.010	0.004	0.000	0.002	0.002	0.000
Nociception_Genital_Q2	0.002	0.000	0.000	0.002	0.000	0.000	0.000	0.022	0.000	0.000	0.906	0.000	0.000	0.000	0.000	0.000	0.024	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.010	0.024	0.004	0.002	0.002	0.002	0.000
Accuracy_Genital_Q1	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.660	0.000	0.340	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sexual_State_Q3	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.994	0.002	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Anxious_State_Q3	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.994	0.002	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sexual_State_Q5	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.104	0.000	0.896	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sexual_State_Q2	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.104	0.000	0.896	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sexual_State_Q1	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.114	0.000	0.886	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_State_Q4	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.994	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Anxious_State_Q4	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.992	0.000	0.000	0.000	0.000	0.000	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sexual_State_Q4	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.000	0.006	0.990	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Anxious_SkinThermo_Q1	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.768	0.008	0.000	0.000	0.000	0.000	0.000	0.000	0.006	0.000	0.000	0.000	0.000	0.008	0.056	0.048	0.054	0.038	0.008	0.004
Anxious_SkinThermo_Q2	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.768	0.012	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.008	0.056	0.048	0.054	0.038	0.008	0.004
Anxious_SkinThermo_Q4	0.002	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.042	0.000	0.000	0.000	0.000	0.756	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.012	0.046	0.046	0.048	0.018	0.018	0.002
Anxious_SkinThermo_Q3	0.002	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.044	0.000	0.000	0.000	0.000	0.754	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.012	0.046	0.046	0.048	0.018	0.018	0.002
Sexual_SkinThermo_Q3	0.000	0.014	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.326	0.000	0.010	0.000	0.000	0.330	0.222	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.024	0.032	0.030	0.010	0.000	0.000	0.000
Sexual_Respiratory_Q1	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.994	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000
Sexual_Cardiac_Q1	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.994	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000
Sexual_SkinThermo_Q1	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.012	0.960	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.008	0.010	0.002	0.004	0.000	0.000
Sexual_SkinThermo_Q2	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.000	0.000	0.000	0.000	0.044	0.918	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.004	0.014	0.010	0.002	0.004	0.000	0.000
Sexual_Gastric_Q2	0.002	0.010	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.200	0.000	0.000	0.000	0.000	0.036	0.660	0.000	0.000	0.000	0.000	0.006	0.000	0.000	0.000	0.000	0.000	0.002	0.016	0.038	0.022	0.008	0.000	0.000	0.000
Sensitivity_ColonBladder_Q1	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.998	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_ColonBladder_Q2	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.998	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Nociception_ColonBladder_Q1	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.014	0.000	0.000	0.000	0.000	0.000	0.000	0.916	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.062	0.002	0.000	0.002	0.000	0.000	0.000	0.000
Confusion_State_Q1	0.012	0.014	0.000	0.000	0.000	0.000	0.002	0.000	0.250	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.696	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.008	0.006	0.004	0.000	0.000	0.000
Confusion_State_Q2	0.012	0.008	0.000	0.000	0.000	0.000	0.002	0.000	0.256	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.696	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.008	0.006	0.004	0.000	0.000	0.000
Anxious_Cardiac_Q1	0.000	0.000	0.000	0.000	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.036	0.000	0.000	0.000	0.890	0.004	0.000	0.000	0.066	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Anxious_Respiratory_Q1	0.000	0.000	0.002	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.038	0.000	0.000	0.000	0.890	0.000	0.000	0.000	0.068	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Anxious_State_Q1	0.000	0.000	0.000	0.042	0.000	0.000	0.000	0.002	0.000	0.002	0.000	0.000	0.000	0.014	0.006	0.000	0.000	0.000	0.046	0.856	0.000	0.000	0.004	0.000	0.000	0.000	0.000	0.018	0.010	0.000	0.000	0.000	0.000	0.000
Anxious_State_Q2	0.000	0.000	0.000	0.030	0.000	0.000	0.000	0.002	0.000	0.002	0.000	0.000	0.000	0.020	0.014	0.000	0.000	0.000	0.046	0.856	0.000	0.000	0.006	0.000	0.000	0.000	0.000	0.018	0.006	0.000	0.000	0.000	0.000	0.000
Anxious_ColonBladder_Q1	0.000	0.256	0.000	0.000	0.000	0.000	0.002	0.000	0.008	0.176	0.000	0.000	0.000	0.000	0.098	0.000	0.000	0.000	0.000	0.000	0.398	0.000	0.000	0.000	0.000	0.000	0.000	0.010	0.038	0.008	0.006	0.000	0.000	0.000
Anxious_Gastric_Q1	0.000	0.172	0.000	0.000	0.000	0.000	0.000	0.000	0.018	0.148	0.000	0.000	0.000	0.000	0.188	0.002	0.000	0.000	0.000	0.002	0.398	0.000	0.000	0.000	0.000	0.000	0.000	0.016	0.042	0.010	0.002	0.002	0.000	0.000
Sensitivity_State_Q1	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.996	0.000	0.000	0.000	0.000	0.000	0.002	0.002	0.000	0.000	0.000	0.000	0.000
Sensitivity_State_Q2	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.996	0.000	0.000	0.000	0.000	0.000	0.002	0.002	0.000	0.000	0.000	0.000	0.000
Sensitivity_State_Q3	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.130	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.868	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000
Sensitivity_Cardiac_Q7	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.996	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_State_Q5	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.996	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_Respiratory_Q7	0.000	0.000	0.072	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.924	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000
Sensitivity_Respiratory_Q5	0.000	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.992	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_Cardiac_Q5	0.000	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.992	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_Respiratory_Q6	0.000	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.006	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.010	0.000	0.000	0.000	0.000	0.974	0.000	0.000	0.004	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_Genital_Q2	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.006	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.992	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_Genital_Q3	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.006	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.992	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_Genital_Q1	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.006	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.992	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Confusion_Genital_Q1	0.034	0.122	0.000	0.000	0.000	0.000	0.014	0.000	0.016	0.296	0.002	0.000	0.000	0.000	0.000	0.002	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.002	0.472	0.000	0.000	0.002	0.014	0.016	0.006	0.000	0.000	0.000
Sensitivity_Gastric_Q2	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	1.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_Gastric_Q1	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	1.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_Gastric_Q3	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	1.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_Gastric_Q6	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.002	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.992	0.006	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Sensitivity_Gastric_Q5	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.074	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.908	0.002	0.004	0.004	0.000	0.006	0.002	0.000
Sensitivity_ColonBladder_Q3	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.122	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.860	0.002	0.004	0.004	0.000	0.006	0.002	0.000
Sensitivity_Gastric_Q4	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.854	0.008	0.020	0.044	0.028	0.026	0.016	0.004
Sensitivity_SkinThermo_Q5	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.854	0.008	0.020	0.044	0.028	0.026	0.016	0.004

Code

items <- select(items, -all_of(toremove2))
byfacet <- select(byfacet, -all_of(toremove2))
bymodality <- select(bymodality, -all_of(toremove2))
byrandom <- select(byrandom, -all_of(toremove2))

Item Loadings

Code

ega2 <- bootEGA(
  items,
  EGA.type = "hierEGA",
  model = "glasso",  # BGGM
  algorithm = "leiden",  # walktrap
  type="resampling",
  plot.itemStability=FALSE,
  typicalStructure=TRUE,
  plot.typicalGraph=FALSE,
  iter=500,
  seed=3, ncores = 4)

save(ega2, file="models/ega2.RData")

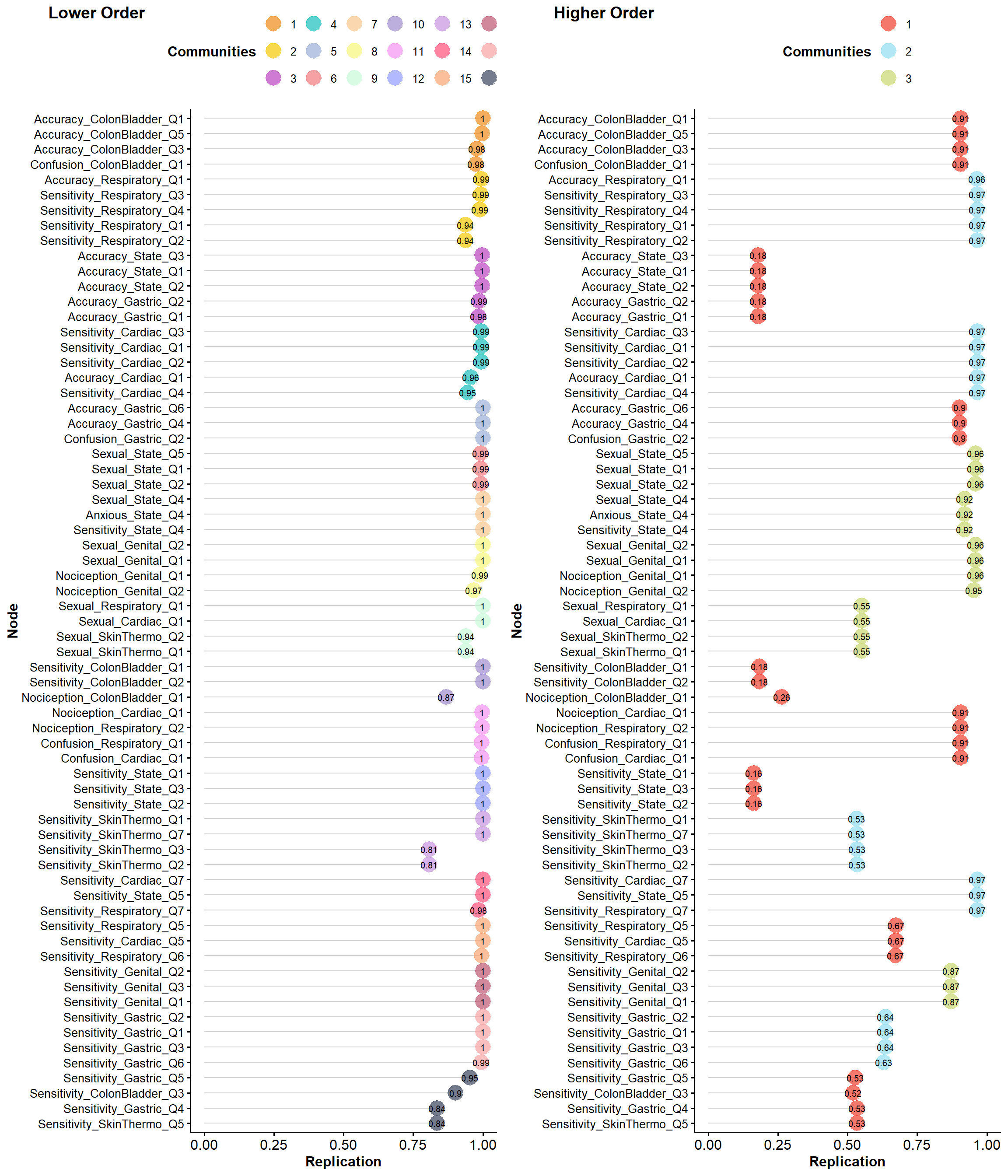

Code

load("models/ega2.RData")

plot(itemStability(ega2, IS.plot=FALSE))

Code

# itemstability_table <- make_loadingtable(itemstability$lower_order$item.stability$all.dimensions)
# toremove2 <- filter(itemstability_table, Max < 0.7)$Item

Code

lower <- make_loadingtable(net.loads(ega2$EGA$lower_order)$std)

toremove3 <- lower$Item[!lower$Item %in% slice_max(lower, Max, n=3, by="Cluster")$Item]

lower |>
  select(-Cluster, -Max) |>
  gt::gt() |>
  gt::data_color(columns=-Item,
                 method = "numeric",
                 palette = c("red", "white", "green"),
                 domain = c(-1, 1)) |>
  gt::data_color(columns=Item, fn=\(x) ifelse(x %in% toremove3, "#FFEBEE", "white")) |>
  gt::tab_header(
    title = gt::md("**Item Loadings**"),
    subtitle = "Node centrality"
  ) |>
  gt::fmt_number(columns=-Item, decimals=3)

Item Loadings
Node centrality
Item	C01	C02	C03	C04	C05	C06	C07	C08	C09	C10	C11	C12	C13	C14	C15	C16	C17	C18
Accuracy_ColonBladder_Q5	0.484	0.000	0.000	0.000	0.045	0.000	0.023	0.001	0.000	0.022	0.088	0.000	0.047	0.000	0.000	0.000	0.000	0.015
Accuracy_ColonBladder_Q1	0.450	0.000	−0.016	0.000	0.000	0.000	0.000	0.000	0.000	0.039	0.013	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Confusion_ColonBladder_Q1	0.433	0.000	−0.017	0.000	0.068	−0.010	−0.029	0.000	0.000	0.021	0.146	−0.062	0.000	0.000	0.028	0.000	0.000	0.000
Accuracy_ColonBladder_Q3	0.356	0.000	0.000	0.000	0.000	0.000	−0.007	0.000	0.028	0.029	0.025	0.000	0.000	0.000	0.035	0.009	0.028	0.035
Sensitivity_Respiratory_Q3	0.000	0.501	0.000	0.096	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.016	0.052	0.047	0.000	0.003	0.010	0.000
Sensitivity_Respiratory_Q1	0.000	0.469	0.000	0.113	0.000	0.000	0.000	0.000	0.000	0.000	0.021	0.000	0.000	0.081	0.005	0.000	0.027	0.000
Sensitivity_Respiratory_Q4	0.000	0.446	0.000	0.127	0.000	0.000	−0.026	0.000	0.006	0.000	0.000	0.035	0.000	0.000	0.000	0.043	0.048	0.000
Sensitivity_Respiratory_Q2	0.000	0.352	0.000	0.125	0.000	0.000	0.000	0.000	0.034	0.000	0.078	0.000	0.000	0.092	0.000	0.000	0.035	0.000
Accuracy_Respiratory_Q1	0.000	0.300	0.067	0.069	0.000	0.000	0.000	0.000	0.000	0.024	−0.003	0.054	0.055	0.000	0.000	0.000	0.000	0.000
Accuracy_State_Q2	0.000	0.002	0.544	0.000	0.000	0.042	0.000	0.000	0.000	0.015	−0.002	0.019	0.022	0.019	0.007	0.000	0.000	0.000
Accuracy_Gastric_Q2	−0.034	0.002	0.439	0.012	0.000	0.009	0.000	0.008	0.000	0.016	0.000	0.042	0.000	0.007	0.000	0.000	0.001	0.008
Accuracy_Gastric_Q1	0.000	0.000	0.408	0.000	−0.011	0.000	0.000	0.000	0.000	0.035	−0.021	0.029	0.043	0.000	0.007	0.032	0.005	0.050
Accuracy_State_Q1	0.000	0.057	0.301	0.000	0.000	0.046	0.000	0.000	0.000	0.005	0.000	0.030	0.027	0.000	0.000	0.000	0.013	0.000
Accuracy_State_Q3	0.000	0.004	0.288	0.000	0.000	0.030	0.018	0.057	0.000	0.034	0.000	0.040	0.064	0.000	0.000	0.000	0.000	0.000
Sensitivity_Cardiac_Q3	0.000	0.078	0.000	0.533	0.000	0.000	0.000	0.000	0.000	0.000	0.046	0.000	0.011	0.041	−0.019	0.000	0.025	0.000
Sensitivity_Cardiac_Q2	0.000	0.110	0.000	0.527	0.000	0.000	0.000	−0.020	0.000	0.000	0.020	0.000	0.000	0.082	−0.022	0.000	0.000	0.002
Sensitivity_Cardiac_Q1	0.000	0.106	0.000	0.438	0.007	0.000	0.000	0.000	0.007	0.000	0.069	0.000	0.017	0.018	0.000	0.028	0.016	0.005
Accuracy_Cardiac_Q1	0.000	0.115	0.012	0.303	0.000	0.000	0.000	0.000	0.000	0.010	0.000	0.047	0.043	0.000	0.004	0.000	0.000	0.006
Sensitivity_Cardiac_Q4	0.000	0.121	0.000	0.277	0.000	0.000	0.000	−0.017	0.003	0.000	0.030	0.014	0.000	0.022	−0.060	0.075	0.046	0.017
Accuracy_Gastric_Q6	0.000	0.000	0.000	0.004	0.551	0.000	0.000	0.000	0.014	0.000	0.008	0.028	0.000	0.000	0.000	0.000	0.000	0.000
Confusion_Gastric_Q2	0.094	0.000	0.000	0.002	0.398	0.000	0.000	0.000	0.000	0.000	0.040	0.000	0.000	0.000	0.009	0.000	0.000	0.008
Accuracy_Gastric_Q4	0.000	0.000	−0.008	0.000	0.332	0.000	0.000	0.000	0.000	0.000	0.029	0.000	0.000	0.000	0.030	−0.012	−0.014	0.000
Sexual_State_Q2	0.000	0.000	0.018	0.000	0.000	0.538	0.036	0.115	0.021	0.027	0.000	0.012	0.000	0.000	0.000	0.034	0.000	0.000
Sexual_State_Q5	0.000	0.000	0.071	0.000	0.000	0.468	0.021	0.092	0.028	0.000	−0.003	0.071	0.000	0.002	0.014	0.043	0.000	0.000
Sexual_State_Q1	−0.010	0.000	0.032	0.000	0.000	0.451	0.096	0.103	0.000	0.009	−0.058	0.049	0.000	0.000	0.000	0.058	0.000	−0.014
Sensitivity_State_Q4	−0.006	0.000	0.017	0.000	0.000	0.003	0.500	0.018	0.020	0.014	0.000	0.123	0.028	0.014	0.000	0.000	0.003	0.000
Sexual_State_Q4	0.022	−0.023	0.000	0.000	0.000	0.144	0.458	0.093	0.023	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000
Anxious_State_Q4	−0.029	0.000	0.000	0.000	0.000	0.000	0.456	0.028	0.000	0.000	0.000	0.000	0.041	0.026	0.000	0.000	0.000	0.000
Nociception_Genital_Q1	0.000	0.000	0.000	−0.015	0.000	0.063	0.000	0.566	0.005	0.009	0.000	0.000	0.025	0.000	0.000	0.099	0.000	0.000
Sexual_Genital_Q2	0.000	0.000	0.000	−0.019	0.000	0.100	0.030	0.466	0.051	0.030	0.000	0.000	0.000	0.000	0.000	0.006	0.000	0.000
Sexual_Genital_Q1	0.000	0.000	0.001	0.000	0.000	0.138	0.095	0.396	0.089	0.003	−0.004	0.000	0.012	0.000	0.008	0.084	0.000	0.000
Nociception_Genital_Q2	0.001	0.000	0.061	0.000	0.000	0.010	0.018	0.241	0.000	0.104	0.000	0.000	0.011	0.000	0.002	0.048	0.000	0.004
Sexual_SkinThermo_Q1	0.000	0.000	0.000	0.000	0.005	0.000	0.000	0.026	0.496	0.000	0.000	0.000	0.049	0.007	0.000	0.000	0.006	0.000
Sexual_Respiratory_Q1	0.000	0.033	0.000	0.000	0.012	0.022	0.026	0.035	0.495	0.033	0.000	0.000	0.004	0.001	0.000	0.000	0.000	0.005
Sexual_Cardiac_Q1	0.000	0.000	0.000	0.007	0.000	0.030	0.021	0.093	0.479	0.000	0.000	0.000	0.000	0.095	0.019	0.000	0.000	0.000
Sexual_SkinThermo_Q2	0.029	0.006	0.000	0.003	0.000	0.000	0.000	0.000	0.306	0.000	0.008	0.000	0.054	0.000	0.069	0.014	0.004	0.035
Sensitivity_ColonBladder_Q2	0.000	0.000	0.039	0.000	0.000	0.024	0.013	0.058	0.000	0.584	0.000	0.011	0.000	0.037	0.000	0.081	0.020	0.093
Sensitivity_ColonBladder_Q1	0.000	0.020	0.047	0.009	0.000	0.008	0.000	0.056	0.000	0.493	0.000	0.036	0.026	0.026	0.000	0.052	0.039	0.043
Nociception_ColonBladder_Q1	0.099	0.000	0.006	0.000	0.000	0.000	0.000	0.019	0.029	0.281	0.000	0.000	0.000	0.004	0.000	0.022	0.000	0.124
Nociception_Respiratory_Q2	0.035	0.048	−0.021	0.000	0.011	−0.025	0.000	0.000	0.000	0.000	0.527	−0.025	0.000	0.000	0.000	−0.007	0.000	0.000
Confusion_Respiratory_Q1	0.094	0.048	0.000	0.000	0.067	−0.013	0.000	0.000	0.008	0.000	0.437	−0.001	0.011	0.054	0.087	0.000	0.000	0.000
Confusion_Cardiac_Q1	0.102	0.000	0.000	0.089	0.016	0.000	0.000	0.000	0.000	0.000	0.417	0.000	0.001	0.000	0.006	0.000	0.000	0.000
Nociception_Cardiac_Q1	0.049	−0.003	−0.002	0.069	0.000	−0.027	0.000	−0.004	0.001	0.000	0.388	0.000	0.023	0.000	0.001	0.000	0.000	0.017
Sensitivity_State_Q1	−0.060	0.065	0.054	0.006	0.000	0.063	0.060	0.000	0.000	0.000	−0.016	0.589	0.019	0.000	0.000	0.000	0.000	0.000
Sensitivity_State_Q2	0.000	0.002	0.044	0.022	0.000	0.063	0.055	0.000	0.000	0.051	−0.006	0.526	0.005	0.017	0.000	0.005	0.035	0.004
Sensitivity_State_Q3	0.000	0.028	0.052	0.027	0.033	0.002	0.011	0.000	0.000	0.000	−0.003	0.325	0.000	0.000	0.036	0.001	0.000	0.000
Sensitivity_SkinThermo_Q1	0.000	0.000	0.028	0.006	0.000	0.000	0.000	0.000	0.001	0.000	0.000	0.000	0.557	0.007	0.024	0.000	0.036	0.033
Sensitivity_SkinThermo_Q7	0.047	0.000	0.000	0.000	0.000	0.000	0.021	0.000	0.012	0.000	0.035	0.000	0.439	0.000	0.003	0.000	0.000	0.006
Sensitivity_SkinThermo_Q2	0.000	0.027	0.090	0.049	0.000	0.000	0.051	0.050	0.015	0.000	0.000	0.005	0.392	0.000	0.005	0.018	0.040	0.000
Sensitivity_SkinThermo_Q3	0.000	0.075	0.036	0.012	0.000	0.000	0.004	0.000	0.077	0.029	0.000	0.020	0.346	0.000	0.000	0.021	0.041	0.045
Sensitivity_Cardiac_Q7	0.000	0.000	0.000	0.118	0.000	0.000	0.000	0.000	0.079	0.000	0.000	0.000	0.000	0.562	0.000	0.000	0.000	0.006
Sensitivity_Respiratory_Q7	0.000	0.200	0.000	0.013	0.000	0.000	0.000	0.000	0.007	0.000	0.050	0.000	0.007	0.454	0.037	0.000	0.000	0.030
Sensitivity_State_Q5	0.000	0.000	0.024	0.016	0.000	0.001	0.041	0.000	0.011	0.072	0.000	0.017	0.000	0.425	0.000	0.020	0.060	0.001
Sensitivity_Respiratory_Q5	0.051	0.000	0.000	0.000	0.037	0.000	0.000	0.000	0.046	0.000	0.022	0.000	0.000	0.002	0.502	0.008	0.000	0.065
Sensitivity_Cardiac_Q5	0.000	0.000	0.011	−0.076	0.000	0.011	0.000	0.001	0.008	0.000	0.000	0.006	0.020	0.000	0.432	0.008	0.000	0.045
Sensitivity_Respiratory_Q6	0.000	0.004	0.000	0.003	0.000	0.000	0.000	0.007	0.015	0.000	0.051	0.024	0.005	0.029	0.311	0.003	0.000	0.031
Sensitivity_Genital_Q1	0.000	0.000	0.000	0.000	−0.014	0.067	0.000	0.154	0.002	0.044	−0.003	0.000	0.000	0.015	0.013	0.591	0.000	0.000
Sensitivity_Genital_Q2	0.000	0.000	0.031	0.026	0.000	0.070	0.000	0.074	0.000	0.078	0.000	0.005	0.038	0.006	0.000	0.465	0.026	0.014
Sensitivity_Genital_Q3	0.009	0.043	0.000	0.070	0.000	0.000	0.000	0.013	0.011	0.051	−0.004	0.001	0.000	0.000	0.010	0.418	0.024	0.042
Sensitivity_Gastric_Q2	0.000	0.016	0.014	0.026	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.000	0.066	0.070	0.000	0.024	0.597	0.013
Sensitivity_Gastric_Q1	0.032	0.028	0.000	0.016	0.000	0.000	0.000	0.000	0.000	0.006	0.000	0.021	0.042	0.000	0.000	0.000	0.563	0.000
Sensitivity_Gastric_Q3	0.000	0.055	0.000	0.048	−0.019	0.000	0.000	0.000	0.011	0.000	0.000	0.010	0.000	0.000	0.000	0.032	0.451	0.012
Sensitivity_Gastric_Q6	0.000	0.027	0.007	0.000	0.000	0.000	0.004	0.000	0.000	0.068	0.000	0.009	0.021	0.000	0.000	0.000	0.313	0.168
Sensitivity_SkinThermo_Q5	0.009	0.000	0.004	0.000	0.000	0.000	0.000	0.000	0.017	0.010	0.000	0.000	0.062	0.000	0.059	0.023	0.057	0.498
Sensitivity_Gastric_Q4	0.033	0.000	0.006	0.020	0.010	−0.013	0.000	0.000	0.015	0.010	0.016	0.004	0.017	0.007	0.050	0.025	0.041	0.438
Sensitivity_Gastric_Q5	0.005	0.000	0.021	0.000	0.000	0.000	0.000	0.004	0.000	0.117	0.000	0.000	0.000	0.000	0.056	0.006	0.040	0.393
Sensitivity_ColonBladder_Q3	0.000	0.000	0.022	0.007	0.000	0.000	0.000	0.000	0.005	0.139	0.000	0.000	0.000	0.029	0.002	0.000	0.027	0.288

Code

items <- select(items, -all_of(toremove3))
byfacet <- select(byfacet, -all_of(toremove3))
bymodality <- select(bymodality, -all_of(toremove3))
byrandom <- select(byrandom, -all_of(toremove3))

We kept the 3 items with the highest loading in their lower-level structure, renoving 13 items (Accuracy_ColonBladder_Q3, Sensitivity_Respiratory_Q2, Accuracy_Respiratory_Q1, Accuracy_State_Q1, Accuracy_State_Q3, Accuracy_Cardiac_Q1, Sensitivity_Cardiac_Q4, Nociception_Genital_Q2, Sexual_SkinThermo_Q2, Nociception_Cardiac_Q1, Sensitivity_SkinThermo_Q3, Sensitivity_Gastric_Q6, Sensitivity_ColonBladder_Q3).

Structure Analysis

Code

ega3 <- bootEGA(
  items,
  EGA.type = "hierEGA",
  model = "glasso",  # BGGM
  algorithm = "leiden",  # walktrap
  type="resampling",
  plot.itemStability=FALSE,
  typicalStructure=TRUE,
  plot.typicalGraph=TRUE,
  iter=500,
  seed=3, ncores = 4)

save(ega3, file="models/ega3.RData")

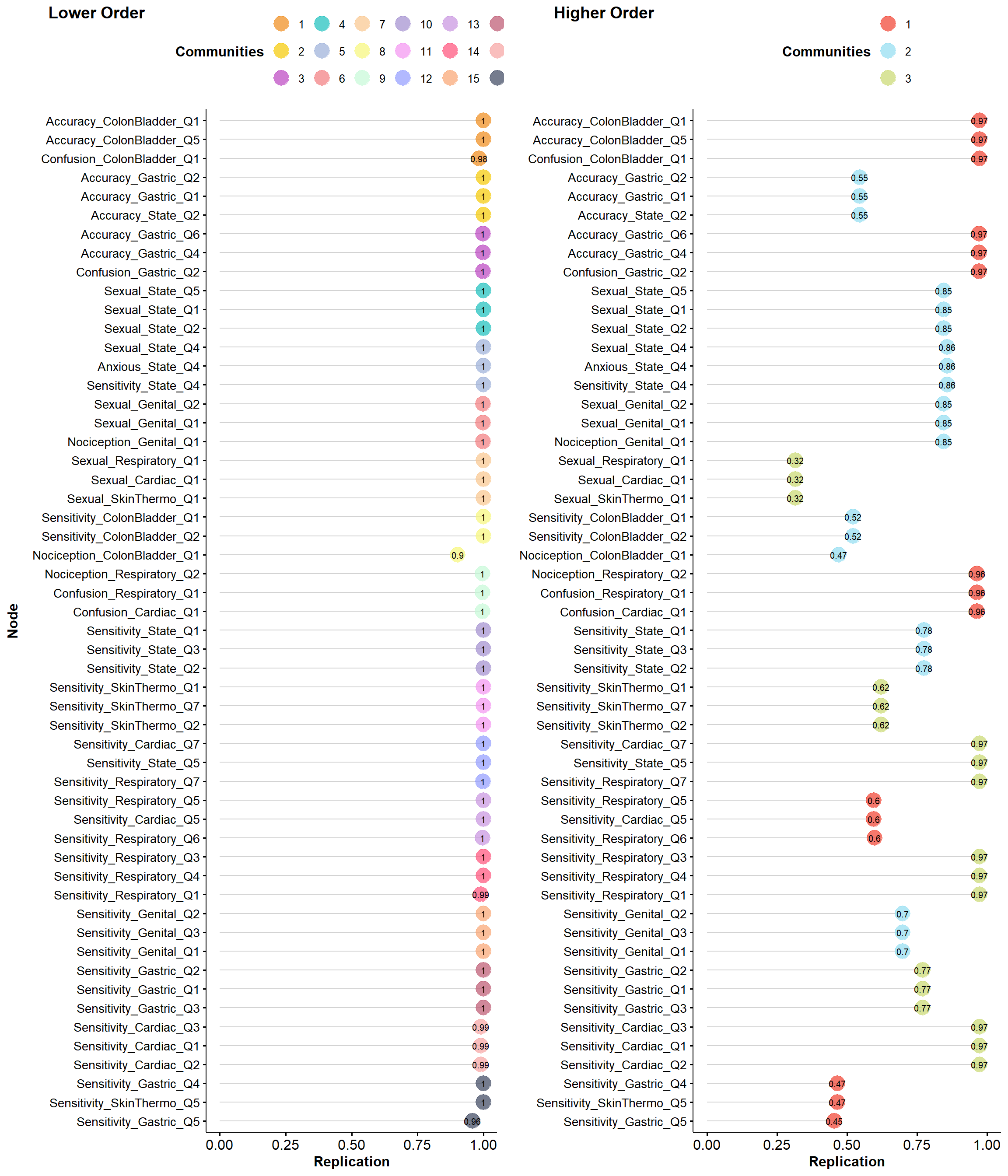

Code

load("models/ega3.RData")

plot(itemStability(ega3))

Item Table

Code

dimensions <- list(
  C01 = "UrIn",       # Urointestinal Inaccuracy
  C09 = "CaCo",       # Cardiorespiratory Confusion
  C13 = "CaNo",       # Cardiorespiratory Noticing
  C18 = "Olfa",       # Olfactory Compensation
  C03 = "Sati",       # Satiety Noticing
  C04 = "SexA",       # Sexual Arousal Awareness
  C06 = "SexS",       # Sexual Arousal Sensitivity
  C15 = "SexO",       # Sexual Organs Sensitivity
  C08 = "UrSe",       # Urointestinal Sensitivity
  C10 = "RelA",       # Relaxation Awareness
  C05 = "StaS",       # State Specificity
  C02 = "ExAc",       # Expulsion Accuracy
  C17 = "Card",       # Cardioception
  C14 = "Resp",       # Respiroception
  C12 = "Sign",       # Signalling
  C16 = "Gast",       # Gastroception
  C11 = "Derm",       # Dermatoception
  C07 = "SexC"        # Sexual Arousal Changes
)

higher <- make_loadingtable(t(net.loads(ega3$EGA$higher_order, loading.method="revised")$std))
cluster_order <- names(higher)[!names(higher) %in% c("Item", "Cluster", "Max")]


lower <- make_loadingtable(net.loads(ega3$EGA$lower_order, loading.method="revised")$std) |>
  select(names(higher)) |>
  mutate(Cluster = fct_relevel(Cluster, cluster_order)) |>
  arrange(Cluster, desc(Max))

higher$Item <- paste0("M", higher$Item)
higher$Label <- c("Interoceptive Deficit", "Interoceptive Awareness", "Interoceptive Sensitivity")
lower <- mutate(lower, Label = labels[Item], ID= Item, Item = 1:n())


tab1 <- rbind(higher, select(lower, -ID)) |>
  datawizard::data_relocate("Label", after = "Item") |>
  select(-Cluster, -Max) |>
  # datawizard::data_rename(dimensions) |>  # https://github.com/easystats/datawizard/issues/576
  datawizard::data_rename(names(dimensions), dimensions) |>
  mutate(`|` = "") |>
  gt::gt() |>
  gt::tab_row_group(
    label = "Items",
    rows = 1:(nrow(lower) + nrow(higher))
  ) |>
  gt::tab_row_group(
    label = "Metaclusters",
    rows = 1:nrow(higher)
  ) |>
  gt::data_color(columns=-Item,
                 method = "numeric",
                 palette = c("red", "white", "green"),
                 domain = c(-1, 1)) |>
  gt::tab_style(
    style = gt::cell_text(size="small", style="italic"),
    locations = gt::cells_body(columns="Label", rows=c(4:57))
  ) |>
  gt::tab_style(
    style = list(gt::cell_text(weight="bold"),
                 gt::cell_fill(color = "#F5F5F5")),
    locations = list(
      gt::cells_row_groups(groups = "Items"),
      gt::cells_row_groups(groups = "Metaclusters")
    )
  ) |>
  # Metacluster 1
  gt::tab_style(
    style = gt::cell_fill(color = "#B39DDB"),
    locations = list(
      gt::cells_column_labels(columns = 3),
      gt::cells_body(columns="Item", rows=c(4:6))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#9FA8DA"),
    locations = list(
      gt::cells_column_labels(columns = 4),
      gt::cells_body(columns="Item", rows=c(7:9))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#90CAF9"),
    locations = list(
      gt::cells_column_labels(columns = 5),
      gt::cells_body(columns="Item", rows=c(1, 10:12))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#81D4FA"),
    locations = list(
      gt::cells_column_labels(columns = 6),
      gt::cells_body(columns="Item", rows=c(13:15))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#80DEEA"),
    locations = list(
      gt::cells_column_labels(columns = 7),
      gt::cells_body(columns="Item", rows=c(16:18))
    )
  ) |>
  # Metacluster 2
  gt::tab_style(
    style = gt::cell_fill(color = "#F3F29D"),
    locations = list(
      gt::cells_column_labels(columns = 8),
      gt::cells_body(columns="Item", rows=c(19:21))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#E6EE9C"),
    locations = list(
      gt::cells_column_labels(columns = 9),
      gt::cells_body(columns="Item", rows=c(22:24))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#D6E8A1"),
    locations = list(
      gt::cells_column_labels(columns = 10),
      gt::cells_body(columns="Item", rows=c(25:27))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#C5E1A5"),
    locations = list(
      gt::cells_column_labels(columns = 11),
      gt::cells_body(columns="Item", rows=c(2, 28:30))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#B5DCA6"),
    locations = list(
      gt::cells_column_labels(columns = 12),
      gt::cells_body(columns="Item", rows=c(31:33))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#A5D6A7"),
    locations = list(
      gt::cells_column_labels(columns = 13),
      gt::cells_body(columns="Item", rows=c(34:36))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#93D1B6"),
    locations = list(
      gt::cells_column_labels(columns = 14),
      gt::cells_body(columns="Item", rows=c(37:39))
    )
  ) |>
  # Metacluster 3
  gt::tab_style(
    style = gt::cell_fill(color = "#CE93D8"),
    locations = list(
      gt::cells_column_labels(columns = 15),
      gt::cells_body(columns="Item", rows=c(40:42))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#F48FB1"),
    locations = list(
      gt::cells_column_labels(columns = 16),
      gt::cells_body(columns="Item", rows=c(43:45))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#EF9A9A"),
    locations = list(
      gt::cells_column_labels(columns = 17),
      gt::cells_body(columns="Item", rows=c(3, 46:48))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#FFAB91"),
    locations = list(
      gt::cells_column_labels(columns = 18),
      gt::cells_body(columns="Item", rows=c(49:51))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#FFCC80"),
    locations = list(
      gt::cells_column_labels(columns = 19),
      gt::cells_body(columns="Item", rows=c(52:54))
    )
  ) |>
  gt::tab_style(
    style = gt::cell_fill(color = "#FFE082"),
    locations = list(
      gt::cells_column_labels(columns = 20),
      gt::cells_body(columns="Item", rows=c(55:57))
    )
  ) |>
  gt::fmt_number(columns=-Item, decimals=2) |>
  gt::tab_header(
    title = gt::md("**Item Loadings**"),
    subtitle = "Node centrality"
  ) |>
  gt::opt_vertical_padding(scale = 0.7) |>
  gt::opt_horizontal_padding(scale = 0.5) |>
  # gt::tab_options(table.width = gt::pct(100)) |>
  gt::cols_width(Label ~ gt::pct(66),
                 `|` ~ gt::pct(1))

gt::gtsave(gt::cols_hide(tab1, `|`), "table1.html", inline_css = TRUE) # Save it and reload it otherwise formatting not ideal

Sys.setenv(CHROMOTE_CHROME = "C:\\Program Files (x86)\\Microsoft\\Edge\\Application\\msedge.exe")

gt::gtsave(tab1, "table1.png", vwidth=1660, expand=0, quiet=TRUE)

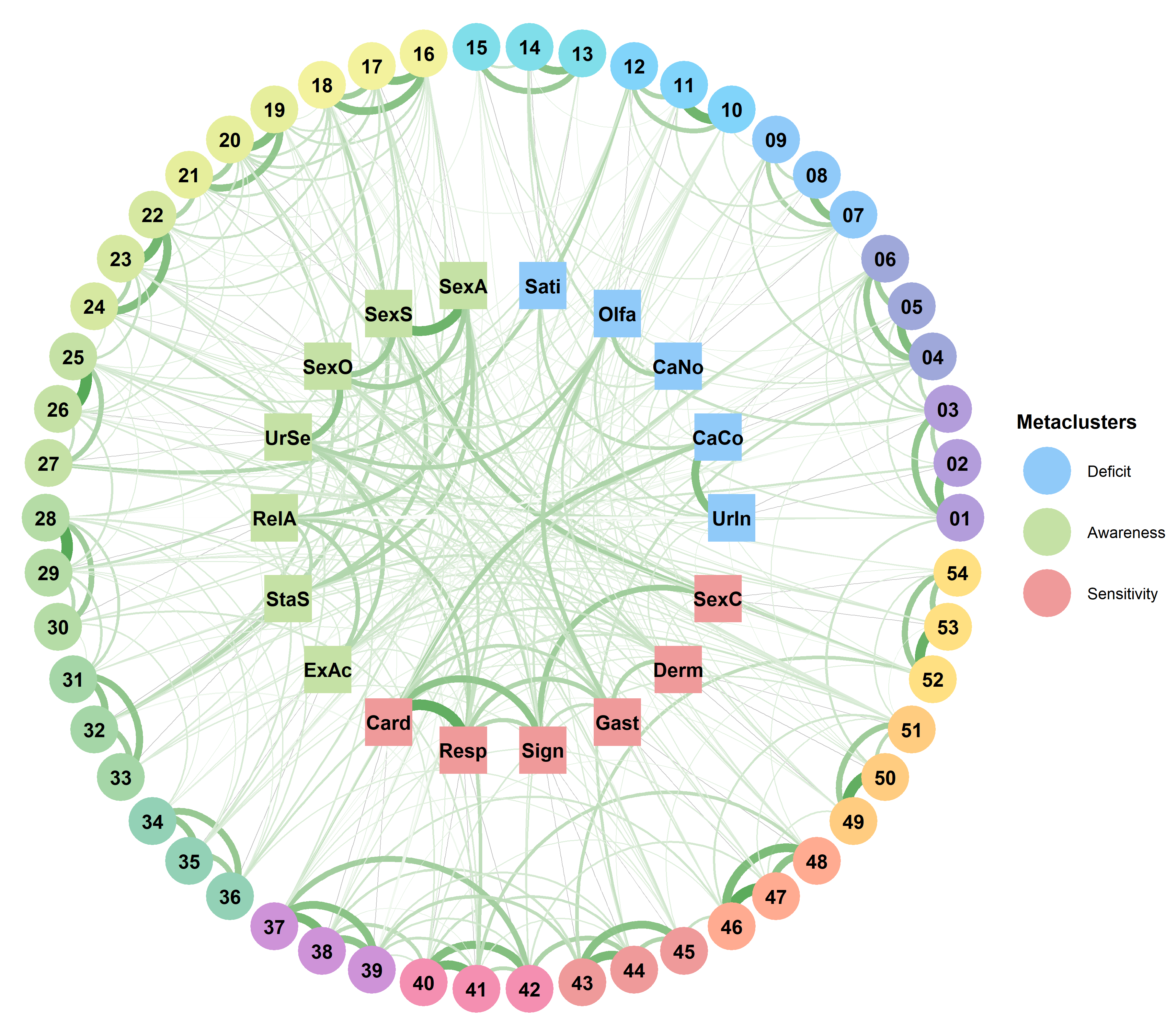

Graph

Code

# REMOVE ONCE https://github.com/hfgolino/EGAnet/pull/167 is merged
convert2tidygraph <- function(EGA.object)
{

  if("bootEGA" %in% class(EGA.object)) {
    # Bootstrapped EGA ---
    if(!"typicalGraph" %in% names(EGA.object)) {
      stop("The bootEGA object must contain a typicalGraph object. Set `typicalStructure=TRUE`.")
    }

    if("lower_order" %in% names(EGA.object$typicalGraph)) {
      # Hierarchical EGA ---
      lower_nodes <- .convert2tidygraph_nodes(EGA.object$typicalGraph$lower_order$wc)
      lower_nodes$dimension <- paste0("L", lower_nodes$dimension)  # Discriminate from higher
      lower_nodes$level <- "Lower"
      higher_nodes <- .convert2tidygraph_nodes(EGA.object$typicalGraph$higher_order$wc)
      higher_nodes$name <- paste0("L", as.numeric(higher_nodes$name))
      higher_nodes$dimension <- paste0("H", higher_nodes$dimension)  # Discriminate from lower
      higher_nodes$level <- "Higher"
      nodes <- rbind(lower_nodes, higher_nodes)

      lower_edges <- .convert2tidygraph_edges(EGA.object$typicalGraph$lower_order$graph)
      higher_edges <- .convert2tidygraph_edges(EGA.object$typicalGraph$higher_order$graph)
      higher_edges$from <- paste0("L", as.numeric(higher_edges$from))
      higher_edges$to <- paste0("L", as.numeric(higher_edges$to))
      edges <- rbind(lower_edges, higher_edges)
      edges$type <- "real"

      # Make edges from lower to higher order
      for(i in 1:nrow(lower_nodes)) {
        edges <- rbind(
          edges,
          data.frame(from = lower_nodes$name[i], to = lower_nodes$dimension[i], link = 1, type = "virtual")
          )
      }
    } else {
      # Non-hierarchical EGA ---
      nodes <- .convert2tidygraph_nodes(EGA.object$typicalGraph$wc)
      edges <- .convert2tidygraph_edges(EGA.object$typicalGraph$graph)
    }

  } else {
    # Normal EGA ---
    nodes <- .convert2tidygraph_nodes(EGA.object$wc)
    edges <- .convert2tidygraph_edges(EGA.object$network)
  }

  # Return result
  return(
    list(
      nodes = nodes,
      edges = edges[edges$link != 0,]
    )
  )
}


#' @keywords internal
#' @noRd
.convert2tidygraph_nodes <- function(wc){
  data.frame(
    name = names(wc),
    dimension = as.character(wc)
  )
}

#' @keywords internal
#' @noRd
.convert2tidygraph_edges <- function(network){
  data.frame(
    from = rep(rownames(network), times = ncol(network)),
    to = rep(colnames(network), each = nrow(network)),
    link = as.vector(network)
  )
}

Code

#| warning: false

graph <- convert2tidygraph(ega3)

replace_lowernames <- function(names, lower) {
  rownames(lower) <- lower$ID
  sprintf("%02d", as.numeric(lower[names, "Item"]))
}
replace_highernames <- function(names) {
  x <- as.numeric(str_remove(names, "L"))
  paste0("C", sprintf("%02d", x))
}


# Arrange lower nodes in circle
lower_nodes <- graph$nodes |>
  filter(level == "Lower") |>
  mutate(name = fct_relevel(name, as.character(lower$ID)),
         ID = name) |>
  arrange(name)
lower_edges <- graph$edges |>
  filter(from %in% lower_nodes$name & to %in% lower_nodes$name)
lower_layout <- tidygraph::tbl_graph(lower_nodes, edges=lower_edges, directed=FALSE) |>
  ggraph::create_layout(layout = 'circle') |>
  as.data.frame()
rownames(lower_layout) <- lower_nodes$name

# Arrange higher nodes in circle
higher_nodes <- graph$nodes |>
  filter(level == "Higher") |>
  mutate(ID = name,
         name = replace_highernames(name),
         name = fct_relevel(name, names(select(higher, -Item, -Cluster,-Max,-Label)))) |>
  arrange(name)
higher_edges <- graph$edges |>
  filter(from %in% higher_nodes$name & to %in% higher_nodes$name)
higher_layout <- tidygraph::tbl_graph(higher_nodes, edges=higher_edges, directed=FALSE) |>
  ggraph::create_layout(layout = 'circle') |>
  as.data.frame()
rownames(higher_layout) <- higher_nodes$ID


# Put circles together
layout <- tidygraph::tbl_graph(graph$nodes, edges=graph$edges, directed=FALSE) |>
  ggraph::create_layout(layout = 'linear', circular = TRUE)
layout[layout$level == "Lower", "x"] <- lower_layout[layout[layout$level == "Lower", ]$name, "x"]
layout[layout$level == "Lower", "y"] <- lower_layout[layout[layout$level == "Lower", ]$name, "y"]
layout[layout$level == "Higher", "x"] <- higher_layout[layout[layout$level == "Higher", ]$name, "x"] * 0.5
layout[layout$level == "Higher", "y"] <- higher_layout[layout[layout$level == "Higher", ]$name, "y"] * 0.5
layout[layout$level == "Lower", "name"] <- replace_lowernames(layout[layout$level == "Lower", ]$name, lower)
layout[layout$level == "Higher", "name"] <- replace_highernames(layout[layout$level == "Higher", ]$name)

# Final renaming
layout[layout$level == "Higher", "name"] <- unlist(dimensions)[layout[layout$level == "Higher", ]$name]
layout[layout$level == "Higher", "dimension"] <- layout[layout$level == "Higher", ]$dimension |>
  str_replace("H1", "Deficit") |>
  str_replace("H2", "Awareness") |>
  str_replace("H3", "Sensitivity")


# layout$dimmension_label <- layout$dimension
# layout[layout$level == "Higher", "dimmension_label"] <- NA

# layout[layout$level == "Higher", "dimension"] <- layout[layout$level == "Higher", "dimension"]

ggraph(layout) +
  geom_edge_link(aes(edge_alpha=as.numeric(type == "virtual"), edge_width = abs(link)), edge_width=0.2, color="grey") +
  geom_edge_arc(aes(edge_color = link, edge_width = abs(link), edge_alpha=as.numeric(type == "real"))) +
  geom_node_point(aes(color=dimension, shape=level), size=12) +
  geom_node_text(aes(label=name), fontface="bold") +
  # geom_node_text(aes(label = dimmension_label, angle = node_angle(x, y), hjust = 'outward')) +
  scale_edge_alpha(range = c(0, 0.9), guide="none") +
  scale_edge_width(range = c(0.2, 7), guide="none") +
  scale_edge_colour_gradientn(colors=c("#E53935", "#E53935", "white", "#43A047", "#43A047"),
                              values=c(-1, -0.5, 0, 0.5, 1), guide="none") +
  scale_shape_manual(values=c("Higher"="square", "Lower"="circle"), guide="none") +
  scale_color_manual(values=c(
    "Deficit"="#90CAF9", "Awareness"="#C5E1A5", "Sensitivity"="#EF9A9A",
    "L1"="#B39DDB", "L9"="#9FA8DA", "L13"="#90CAF9", "L18"="#81D4FA", "L3"="#80DEEA",
    "L4"="#F3F29D", "L6"="#E6EE9C", "L15"="#D6E8A1", "L8"="#C5E1A5", "L10"="#B5DCA6", "L5"="#A5D6A7", "L2"="#93D1B6",
    "L17"="#CE93D8", "L14"="#F48FB1", "L12"="#EF9A9A", "L16"="#FFAB91", "L11"="#FFCC80", "L7"="#FFE082"),
                     breaks=c("Deficit", "Awareness", "Sensitivity")) +
  theme_void() +
  theme(legend.title = element_text(face="bold")) +
  labs(color="Metaclusters")

Model Comparison

Code

# EGAnet::EGM(items[, 1:60])
EGAnet::EGM.compare(items, model = "glasso", algorithm = "leiden")
rez <- EGAnet::network.compare(byfacet, bymodality, model = "glasso", seed=3)

plot(rez)

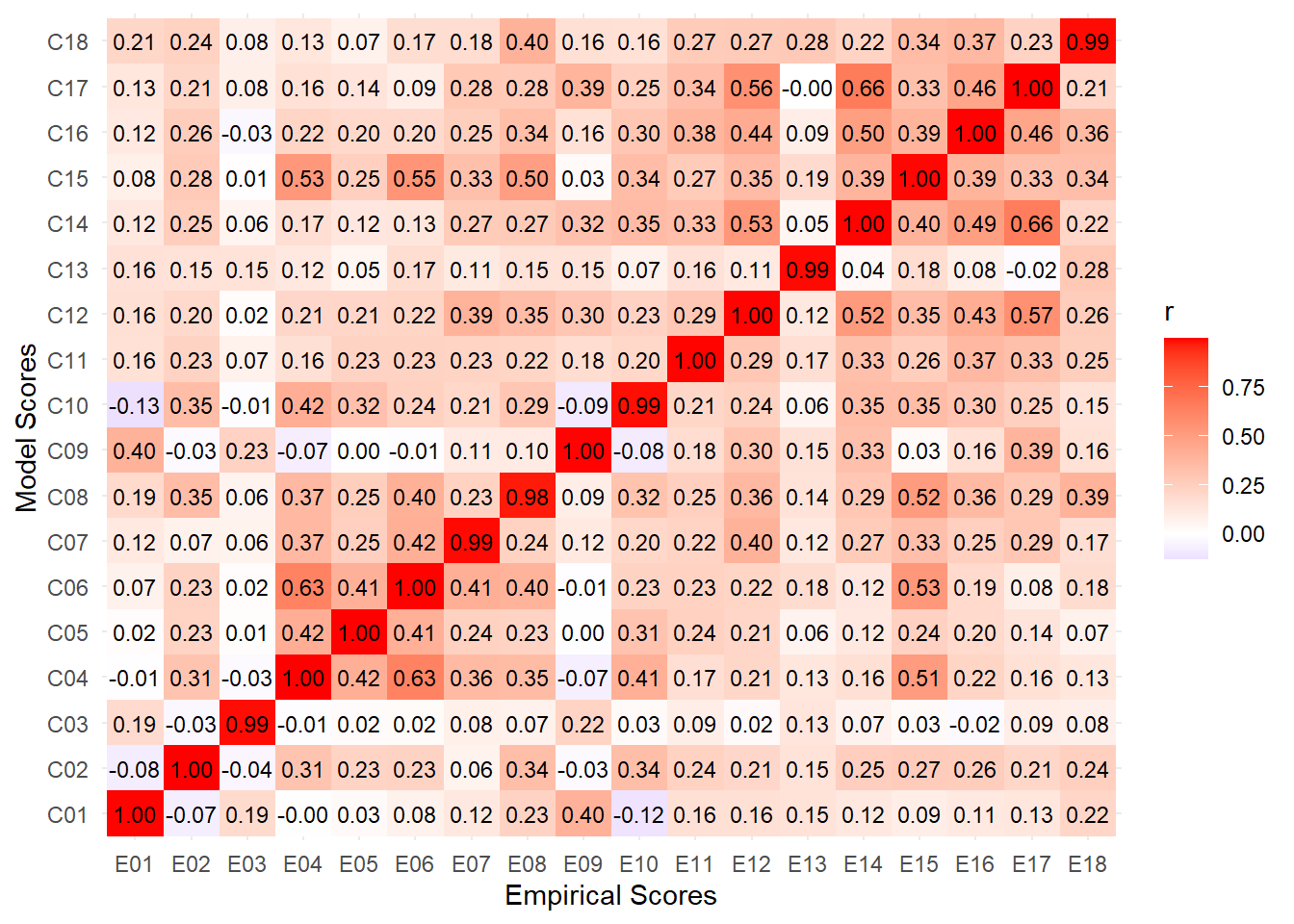

Empirical vs. Model Scores

Code

# Modelbased scores
scores <- EGAnet::net.scores(
  items[names(ega3$typicalGraph$lower_order$wc)],
  A=ega3$typicalGraph$lower_order$graph,
  wc=ega3$typicalGraph$lower_order$wc)$scores$std.scores |>
  as.data.frame()
names(scores) <- paste0("C", names(scores))

# Empirical scores
clusters <- data.frame(Item = names(ega3$typicalGraph$lower_order$wc),
                       Cluster = ega3$typicalGraph$lower_order$wc) |>
  mutate(Cluster = paste0("E", sprintf("%02d", Cluster)))

empirical <- data.frame(Participant=df$Participant)
for(c in unique(clusters$Cluster)) {
  s <- rowMeans(items[clusters[clusters$Cluster==c, "Item"]])
  empirical <- cbind(empirical, setNames(data.frame(x = s), c))
}

correlation::correlation(empirical, scores) |>
  ggplot(aes(x=Parameter1, y=Parameter2, fill=r)) +
  geom_tile() +
  geom_text(aes(label=sprintf("%.2f", r)), size=3) +
  scale_fill_gradient2(low="blue", high="red", mid="white", midpoint=0) +
  labs(x="Empirical Scores", y="Model Scores") +
  theme_minimal()
